LEV T5832-I IV COMBI DUP REC/USB CH

Manufacturer: Leviton | Catalog # T5832-I | Codale Part # 4197810
$64.34/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

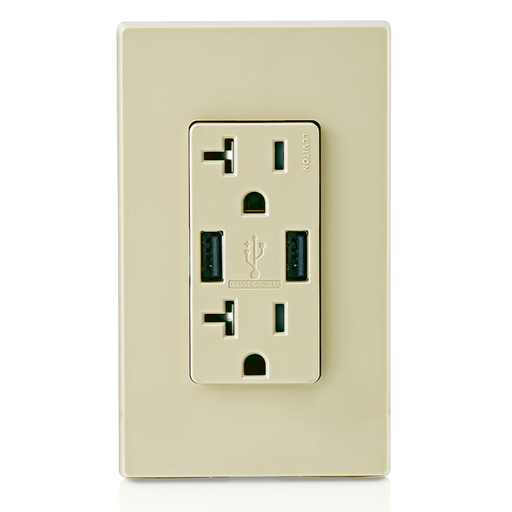

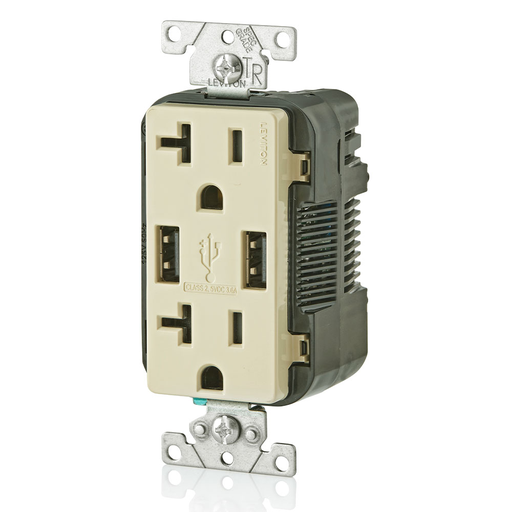

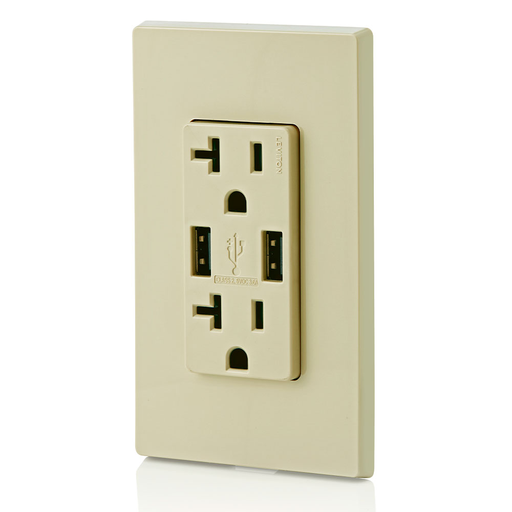

Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-20R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - Ivory

Technical Information

Amperage
20 Amp
Applications
Residential / Commercial
Body Material
Thermoplastic,Thermoplastic
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1 hp
NEMA
5-20R
Operating Temperature
-10 degrees C
Standard
CCSAus
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
Type A/A Duplex Receptacle
Voltage
125 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
USB Devices

General Product Info

12-Digit UPC
078477683934
Color
Ivory,Ivory,Ivory
Product Type
Outlet/USB Combo
Product UPC
07847768393
Weight
0.3500 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • Tested to withstand over 10,000 insertions.
  • Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
  • Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
  • Easy to install. Can replace existing outlets
  • No data transfer capability
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
  • SMART - Built-in smart chip recognizes the individual devices charging requirement to optimize the charge
  • POWERFUL Two high-powered charging ports with 3.6A of charging power
  • CONVENIENT No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
  • EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
Color Variations
  • Brown
NEMA
  • 5-20R
