Caddy SBC037 Stamped Beam Clamp, Top Mount, 3/8" Rod, 3/4" Max Flange

Manufacturer: Caddy Fasteners | Catalog # SBC037 | Codale Part # 4198916
$1,043.52/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

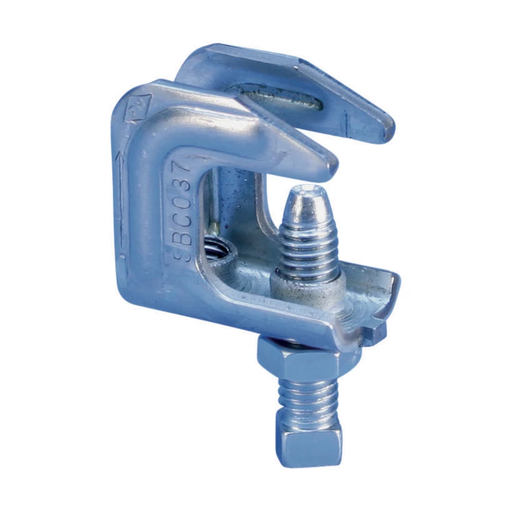

Top mounted beam clamp for use with standard flange widths. Electrogalvanized, 3/8" rod, 3/4" max flange.

Technical Information

Applications
Datacom and Low Voltage; Electrical Fixing and Fastening; Fire Sprinkler; HVAC, Plumbing and Refrigeration
Material
Steel
Trade Size
3/4 Inch
Type
SBC Stamped Beam Clamp, Top Mount

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856798781
Finish
Pregalvanized
Product UPC
78285679878
Weight
0.09 kg
Features

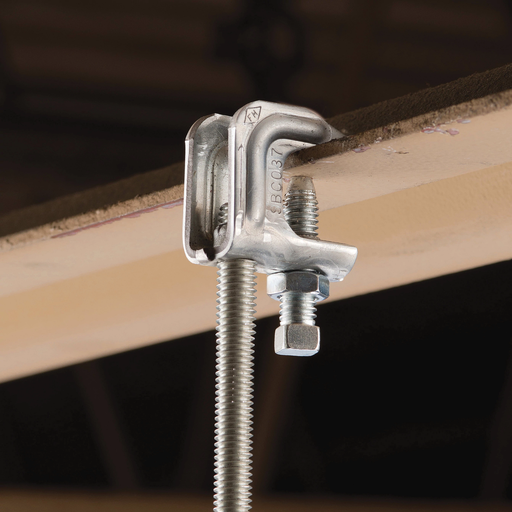

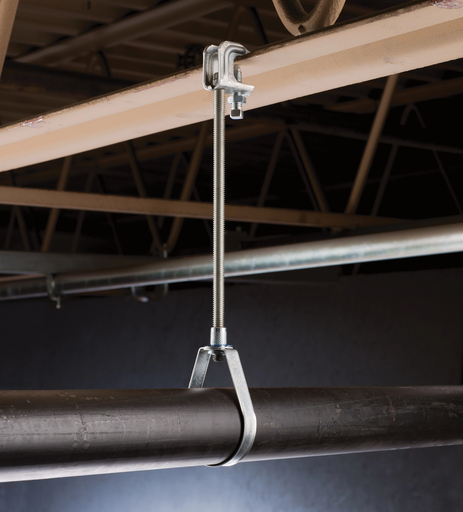

  • Allows structural attachment to metal beams, bar joist, channel, or angle iron in top mount position only unless used on a parallel flange
  • Lightweight, one-piece stamped body provides superior strength and eliminates deficiencies associated with castings
  • Spins onto threaded rod and allows for easy adjustment
  • Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19)
Certifications
  • FM Approved, Pipe Hanger Components FM 1951, 1952, 1953 (December 2016)
  • cUL ULC/ORD-C203
  • UL ANSI/UL 203
