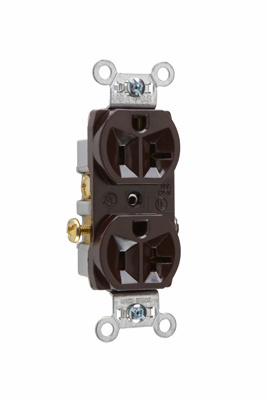

Product image for Pass & Seymour CR20 Commercial Spec Grade Duplex Receptacle Side Wire 20Amp 125Volt Brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour CR20 Commercial Spec Grade Duplex Receptacle Side Wire 20Amp 125Volt Brown

Manufacturer: Legrand Pass & Seymour | Catalog # CR20 | Codale Part # 4199577
$6.23 /ea
ea
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Not in local stock *
Check another branch
*Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, Gray

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
4 AWG
Connection Type
Wire Ground, Side Wire
Grade
Residential/Commercial
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Wall, Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
3.3 in
Tc Connection
Wire Ground
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007119121
Color
Brown
Finish
Untreated, Gloss
Product UPC
78500711912
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Certifications
  • cULus Listed
