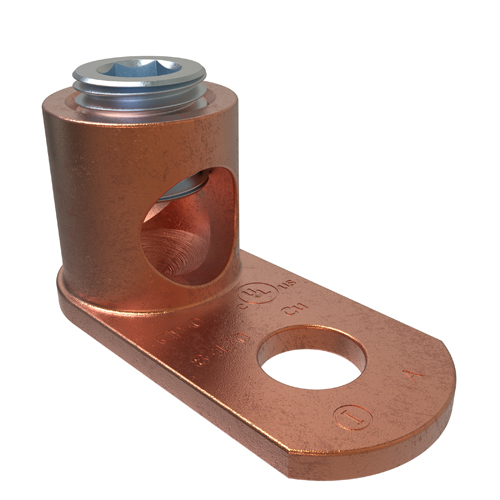

Product image for Ilsco CP-0 Copper Post Connector, Conductor Range 1/0-8, 5/16in Bolt Size, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CP-0 Copper Post Connector, Conductor Range 1/0-8, 5/16in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # CP-0 | Codale Part # 4200578
$14.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Post Connector, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 or 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 1/0 Str - 10 Str, 2 Sol - 10 Sol 1 conductors, 1 ports/wireways, Drive Type Main 1/4 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Bolt Size
5/16 in
Conductor Material
Copper
Conductor Size
8-1/0 AWG
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
11/32 in
Number of Conductors
1
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
CP:POST CONNECTOR
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669030105
Color
Copper
Product UPC
78366903010
Weight
0.08 lb

Dimensions

Height
0.763 Inch
Length
1.69 Inch
Width
0.73 in
