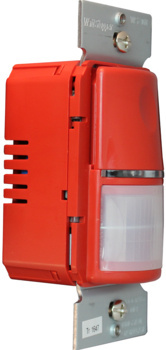

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

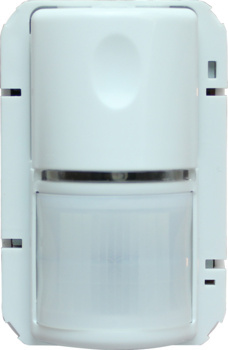

Image thumbnail 5
Image thumbnail 6
Email

Wattstopper WS-301-I Passive Infrared Wall Switch Occupancy Sensor, 120/277V - Ivory

Manufacturer: Legrand WattStopper | Catalog # WS-301-I | Codale Part # 4200691
$122.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
The WS-301 Passive Infrared (PIR) Wall Switch Sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate. Complies with 2011 NEC requirements. Zero crossing circuitry reduces stress on the relay and results in increased sensor life. Adjustable time delay and sensitivity. Custom two-tier Fresnel lens enhances detection at the desktop level. Sensor coverage tested to NEMA Guide Publication WD 7-2000.

Technical Information

Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Input Voltage
240/277 VAC, 120 V
Load Rating
1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Mounting Type
In-Wall
Number of Poles
1 Pole
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
900 sq ft
Sensor Type
Occupancy
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Type
Core Balanced

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935352
Color
Ivory
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
Product UPC
75418293535

Dimensions

Depth
1.55 Inch
Height
2.6 Inch
Length
2.6 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Custom two-tier Fresnel lens enhances detection at the desktop level
  • Light level sensor holds lights off when ambient lighting is above the preset level
  • Patented voltage drop protection
  • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
  • Adjustable time delay and sensitivity
