Product image for On-Q WP3450-BE 1-Port RJ45 Category 5E Blue Plastic Snap-In Keystone Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

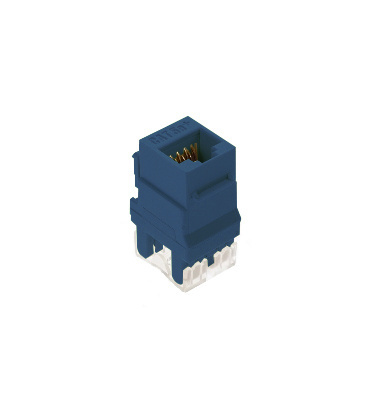

On-Q WP3450-BE 1-Port RJ45 Category 5E Blue Plastic Snap-In Keystone Connector

Manufacturer: Legrand Pass & Seymour | Catalog # WP3450BE | Codale Part # 4200699
$9.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The vertical design of this high quality insert makes punchdown termination easy. The insert is for use in all Keystone wall plates and is available in multiple colors, as well as convenient contractor packs.

Technical Information

Amperage
1.5 Amp at 20 C
Applications
Residential, for Round Cable, Flat Cable, Solid Core
Cable Size
22-24 AWG
Cable Type
Category 5E
Current
1.5 (@ 20 degrees C) Amp
Material
Phosphor Bronze Alloy Plated with 50 in of Gold over 100 in of Nickel
Mounting Type
Wall Plate
Number of Ports
1
Number of Positions
8
Size
0.67 x 076 x 1.18 (17.02 x 19.30 x 29.97) in (mm)
Tc Connection
RJ45 Female
Temperature Rating
14 - 140 degrees F
Termination Type
IDC Wire Guage
Type
RJ-45 8(4) Female, T568-A/B Wiring, Bus Jack, M20
Voltage
1000 VRMS

Manufacturer Information

Brand
OnQ Solutions
Sub Brand
On-Q

General Product Info

12-Digit UPC
804428024903
Color
Blue
Environmental Conditions
0 - 93% RH Non-Condensing
Finish
Molded Plastic Chemically Etched with Diamond Core
Product UPC
80442802490

Dimensions

Height
0.87 Inch
Length
1.28 Inch
Width
0.64 in
Additional Information
  • Number of Ports 1
  • Number of Pairs 4
  • Termination Type IDC
  • Wire Size 24 to 22 AWG
  • Operating Temperature 14 to 140 Deg F
  • Size 1.28 Inch L x 0.64 Inch W x 0.87 Inch H
