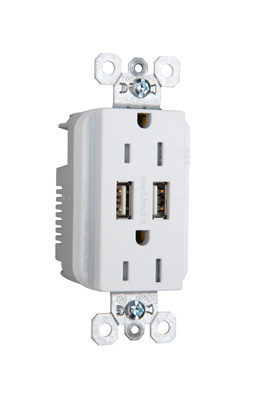

Product image for Pass & Seymour TR-5262USBW 15 Amp 125 VAC NEMA 5-15R White Decorator Duplex USB Charger Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour TR-5262USBW 15 Amp 125 VAC NEMA 5-15R White Decorator Duplex USB Charger Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # TR5262USBW | Codale Part # 4201452
$63.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
For Commercial Markets
Conductor Size
14-10 AWG
Dielectric Strength
Withstands 2000V minimum
Material
Thermoplastic
Mounting Type
Box
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Tamper Resistant
Size
1.392" (D) x 1.693" (W) x 3.281" (H)
Style
Decorator
Tc Connection
Side & Back Wired
Temperature Rating
-40 degrees C to 60 degrees C
Type
Non-Reversing
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007031621
Color
White
Finish
Matte
Product UPC
78500703162

Dimensions

Depth
1.392 Inch
Height
2.677 Inch
Width
1.693 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Vietnam
Features
  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • Auto-ground clip assures positive ground.
  • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
  • Multiple color options available.
  • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
  • Stainless steel auto-ground clips assure positive ground.
  • Wire Size: #14 - #10 AWG Copper Conductor Only
Certifications
  • UL Listed
  • cULus Listed
