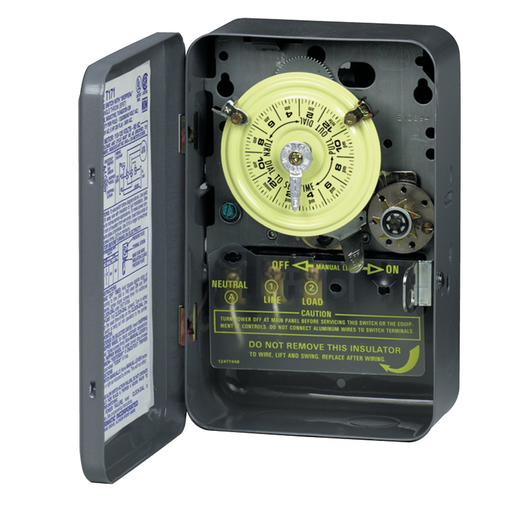

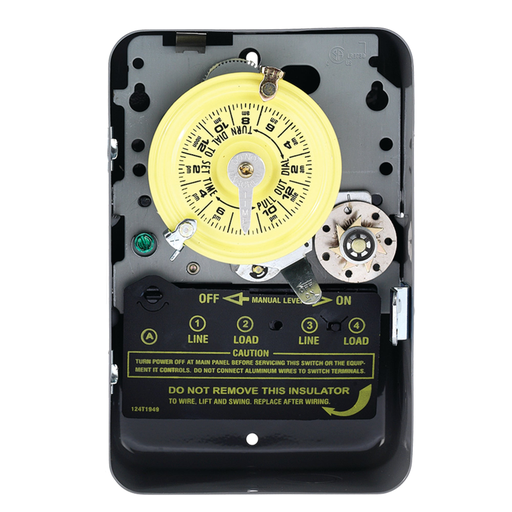

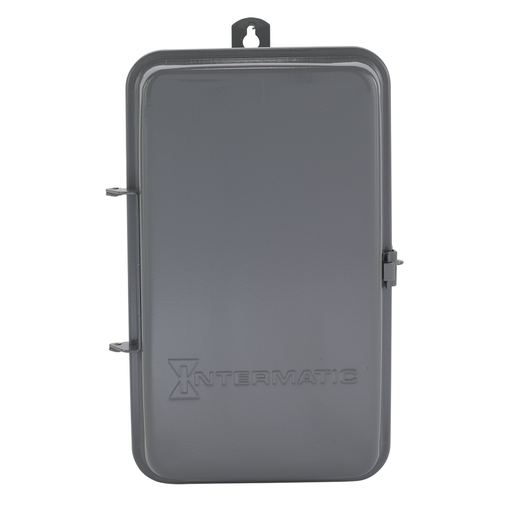

Intermatic T174 NEMA 1 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch

Manufacturer: Intermatic | Catalog # DN11A-M220 | Codale Part # 4202794
$156.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Technical Information

Action
DPST
Amperage
40 Amp
Applications
Commercial, Industrial, Residential, Outdoor, HVACR
Contact Configuration
DPST - 2 NO
Contact Rating
40 A at 120 - 480 VAC (Resistive), 40 A at 120/240/277 VAC (Tungsten, Inductive), 1000 VA at 120 - 277 VAC
Enclosure
NEMA 1
Enclosure Rating
1
Enclosure Type
NEMA 1
Frequency
60 Hz
Input Voltage
208-277 V
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
2 hp at 120 VAC, 5 hp at 240 VAC
Switch Type
DPST
Temperature Rating
-40 to 104 degrees F
Type
Mechanical
Voltage
208-277 VAC
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275174214
Color
Gray
Product UPC
07827517421
Weight
1.0000 lb

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Controls loads up to 40 A per pole
  • Direct 24-hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included
  • NA
