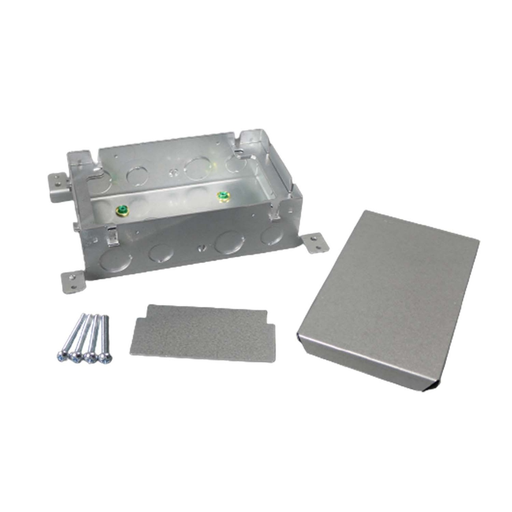

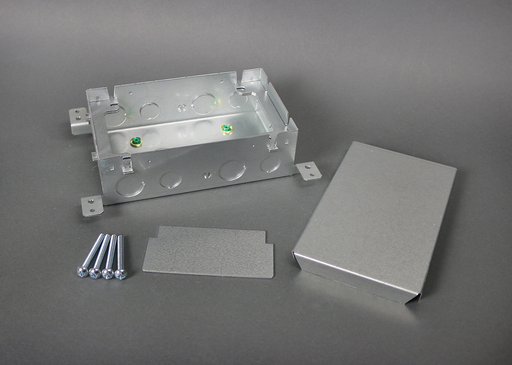

Wiremold 880M2 1/2 x 3/4" 80 In? 2-Gang Shallow Stamped Steel Floor Box

Manufacturer: Legrand Wiremold | Catalog # 880M2 | Codale Part # 4203
$148.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual CAD Drawing #1
The 880M2 shallow two gang Omnibox® Floor Box provides an excellent activation solution for applications where single service is required in open space areas. The 880M2 floor box is offered in a stamped steel construction, designed to be installed in above grade concrete floor applications and to meet a wide range of market requirements. This floor box series has many applications, some of which are schools, financial institutions, and commercial office buildings.

Technical Information

Applications
Commercial, Office
Cable Entry
Through Floor
Material
Steel
Mounting Type
In Concrete
Number of Gangs
2 Gang
Number of Outlets
0
Size
7 15/16" x 4 13/16" x 2 15/32"
Type
Shallow

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564221739
Color
Silver
Construction
Assembled
Product Series
Omnibox
Product UPC
78656422173
Weight
3.43 lb

Dimensions

Depth
2-15/32 Inch
Height
2-1/2 Inch
Length
7-15/16 Inch
Width
4-13/16 in

Certifications and Compliance

Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
Features
  • TopGuard protection. All cover assemblies for the Omnibox Floor Box Series have TopGuard protection. An integral design which keeps out water, dirt, and debris from the power and communication compartments.
  • Fully adjustable box. Before and after concrete pour adjustability. Lower installed cost.
  • Concrete-tight stamped steel construction. Lower cost option for above grade applications.
  • Two-gang configurations, maximum flexibility. Can remove divider for greater capacity. Supports multiservice applications.
  • Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2.
  • Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable for both cast-iron and stamped steel.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
  • A wide selection of data and bezel options available for use with Ortronics TracJack and Series II devices.
Certifications
  • cULus Listed
  • RoHS Compliant
