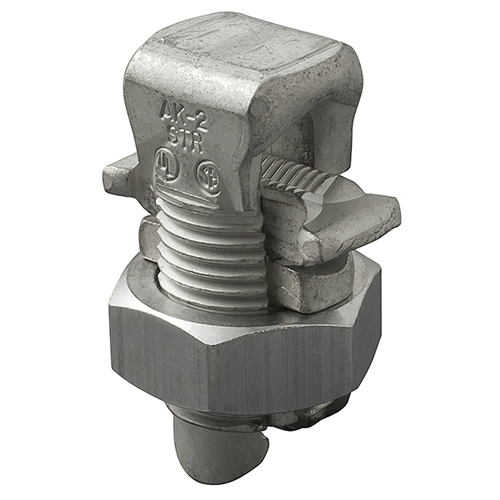

Ilsco AK-2 Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AK-2 | Codale Part # 4203466
$16.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Split Bolt, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 2 Str - 6 Str COMPACT, Copper/Aluminum Secondary Conductor 2 Str - 8 Str, 1 conductors, 1 ports/wireways, Drive Type Main 11/16, 15/16 External Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Aluminum/Copper Conductors
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Number of Conductors
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
AK:AL/CU SPLIT BOLT
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008326
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366900832
Weight
0.062 lb

Dimensions

Height
0.69 Inch
Length
1.88 Inch
Width
0.94 in
