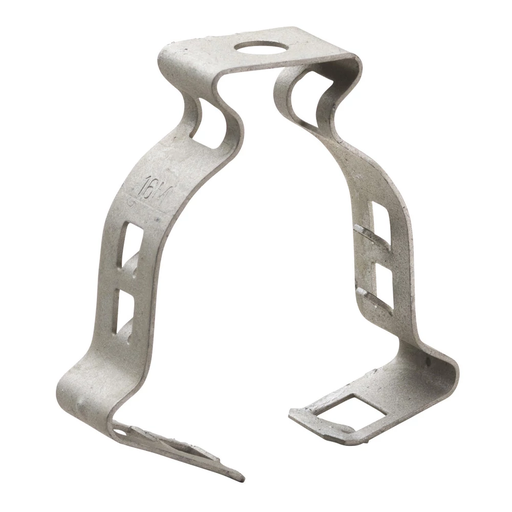

Product image for Caddy 16M Snap Close Conduit/Pipe Clamp, Spring Steel, 3/4", 1" EMT, 3/4", 1" Rigid/Pipe, 9/32" Hole, Plain
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Caddy 16M Snap Close Conduit/Pipe Clamp, Spring Steel, 3/4", 1" EMT, 3/4", 1" Rigid/Pipe, 9/32" Hole, Plain

Manufacturer: Caddy Fasteners | Catalog # 16M | Codale Part # 4203511
$279.06/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Snap Close Conduit/Pipe Clamp, Spring Steel, 1" EMT, 1" Rigid/Pipe, 1.181".1.378" OD, 9/32" Hole, Plain

Technical Information

Applications
Datacom and Low-Voltage, Electrical
Cable Size
30 - 35 mm
Load Capacity
440 N
Material
Steel
Trade Size
1 Inch
Type
Snap Close

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856702160
Finish
NVent CADDY Armour
Product UPC
78285670216
Weight
0.02 kg
Features
  • May be used for either vertical or horizontal installations
  • Eliminates need for offset bending conduit
  • Finger closure, no tools required
  • Locking design has greater resistance to twisting loads and is stronger than any on the market
  • Low profile locking tabs and smooth gripping dimples remove the possibility of scrapes
  • 812M and 16M feature double tabs to center conduit, increase range and holding power and prevent conduit from sliding
Certifications
  • cUL CAN/CSA C22.2 No. 18.4-04
  • UL ANSI/UL 2239
