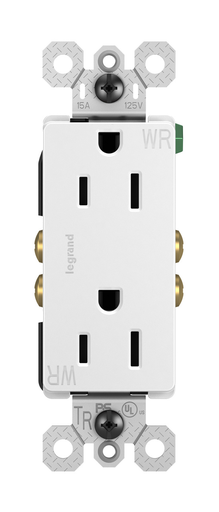

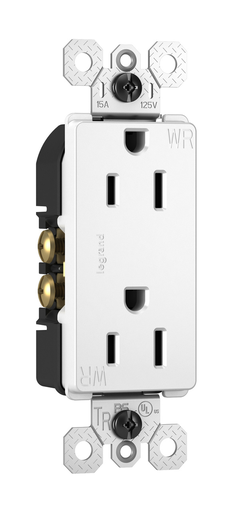

Product image for Pass & Seymour 885-TRWRW radiant® Decorator Tamper-Resistant Receptacle, Weather-Resistant, 15A 125V (5-15R), White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Pass & Seymour 885-TRWRW radiant® Decorator Tamper-Resistant Receptacle, Weather-Resistant, 15A 125V (5-15R), White

Manufacturer: Legrand Pass & Seymour | Catalog # 885-TRWRW | Codale Part # 4204056
$20.16 /ea
ea
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Not in local stock *
Check another branch
*Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Take a step up from the standard, even outside. This weather-resistant* outlet installs easily to bring power to your patio, pool area, porch or deck, while elevating your outdoor space with the sleek, clean lines of radiant® for a sophisticated look. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Hospitality,Residential
Indoor Outdoor
Outdoor
Material
Thermoplastic
Mounting Type
Box
NEMA
15A
Number of Gangs
1 Gang
Number of Poles
2 Pole
Number of Wires
3 Wire
Orientation
Vertical
Outlet Type
Straight Blade,Tamper-Resistant,Weather-Resistant
Size
4.25"
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007241792
Color
White
Finish
Satin
Product UPC
78500724179
UNSPSC
39121704

Dimensions

Depth
1 Inch
Height
4.2 Inch
Thickness
1.3"
Warranty Length
1 yr
Width
1.29 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Residential Weather-Resistant Receptacles are Tamper-Resistant as required by National Electrical Code.
  • Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
  • WR markings on face per UL Weather-Resistant requirements.
  • Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
  • Side wire accepts #12 #14 AWG solid wire.
  • Push wire accepts #14 AWG solid only. Low profile face.
  • Traditional contoured face.
  • High-impact resistant thermoplastic construction.
  • Safer and more effective than plastic outlet caps.
  • TR markings identify devices as Tamper-Resistant.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
