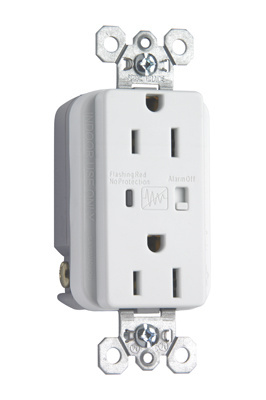

Pass & Seymour 5262-WSP 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Nylon Surge Protective Duplex Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # 5262-WSP | Codale Part # 4204116
$169.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, Gray.

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Duty Rating
Extra Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.70 L x 1.25 W x 3.75 H In
Tc Connection
Back and side wire
Temperature Rating
-20 to 55 degrees C Operating, -40 to 85 degrees C Storage
Type
Non-Reversing
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007193893
Class
IG
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
Product UPC
78500719389
UNSPSC
39121406

Dimensions

Depth
7/8 Inch
Height
2-3/4 Inch
Width
1.7 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
  • Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
