Caddy C23 Electrical box bracket to stud, 2-1/2", 3-5/8" wall depth, 3.51"

Manufacturer: Caddy Fasteners | Catalog # C23 | Codale Part # 4204609
$658.75/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
479 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

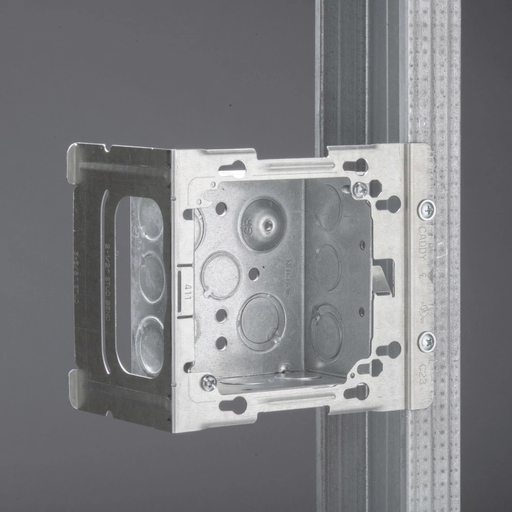

C Series Electrical Box Bracket to Stud improved design replaces the H-Brackets providing increased rigidity. Works with both standard and adjustable single and double gang mud rings. Works with both standard and adjustable, single and double gang mud rings. 3-5/8" and 2-1/2" stud wall depth.

Technical Information

Applications
Electrical Fixing and Fastening; Datacom and Low Voltage
Material
Steel
Type
Stud Mounted Box Brackets

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856864257
Finish
Pregalvanized
Product UPC
78285686425
Weight
0.10 kg

Dimensions

Depth
93-93
Height
5.05-5.05
Thickness
0.79-0.79
Width
150-150
Features
  • Improved keyhole pattern to make mounting of 4 11/16\" boxes easier

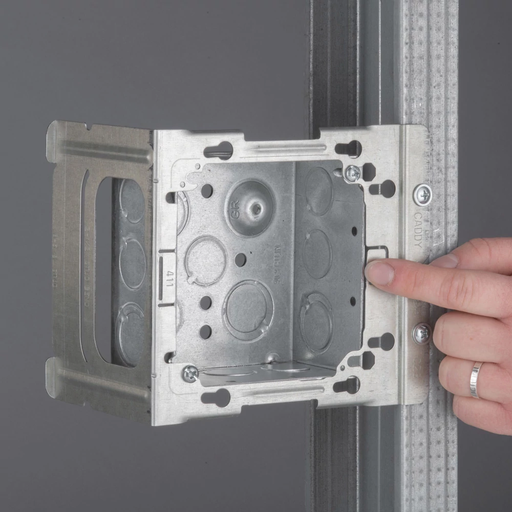

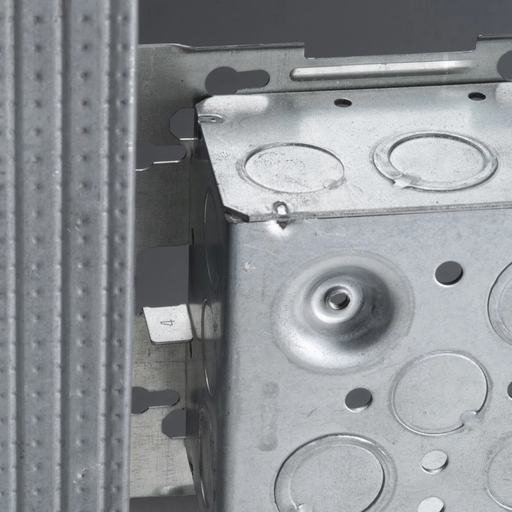

  • Box lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
  • Designed with thicker steel to significantly increase rigidity and help prevent box movement and trim out issues
  • Unique step in\" feature at the top and bottom of the bracket to easily access the set screws

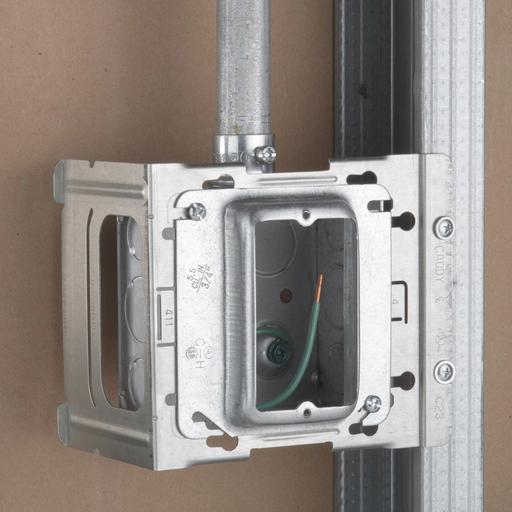

  • Works with both standard and adjustable single and double gang mud rings
  • Mounts mud rings for low voltage applications
  • Visible mud ring reference location lines help position mud rings for low voltage applications
  • Additional bend points on C4 and C6 brackets for greater versatility
  • Patented
Certifications
  • cUL CAN/CSA-C22.2 No. 18.1-04
  • UL ANSI/UL 514A
