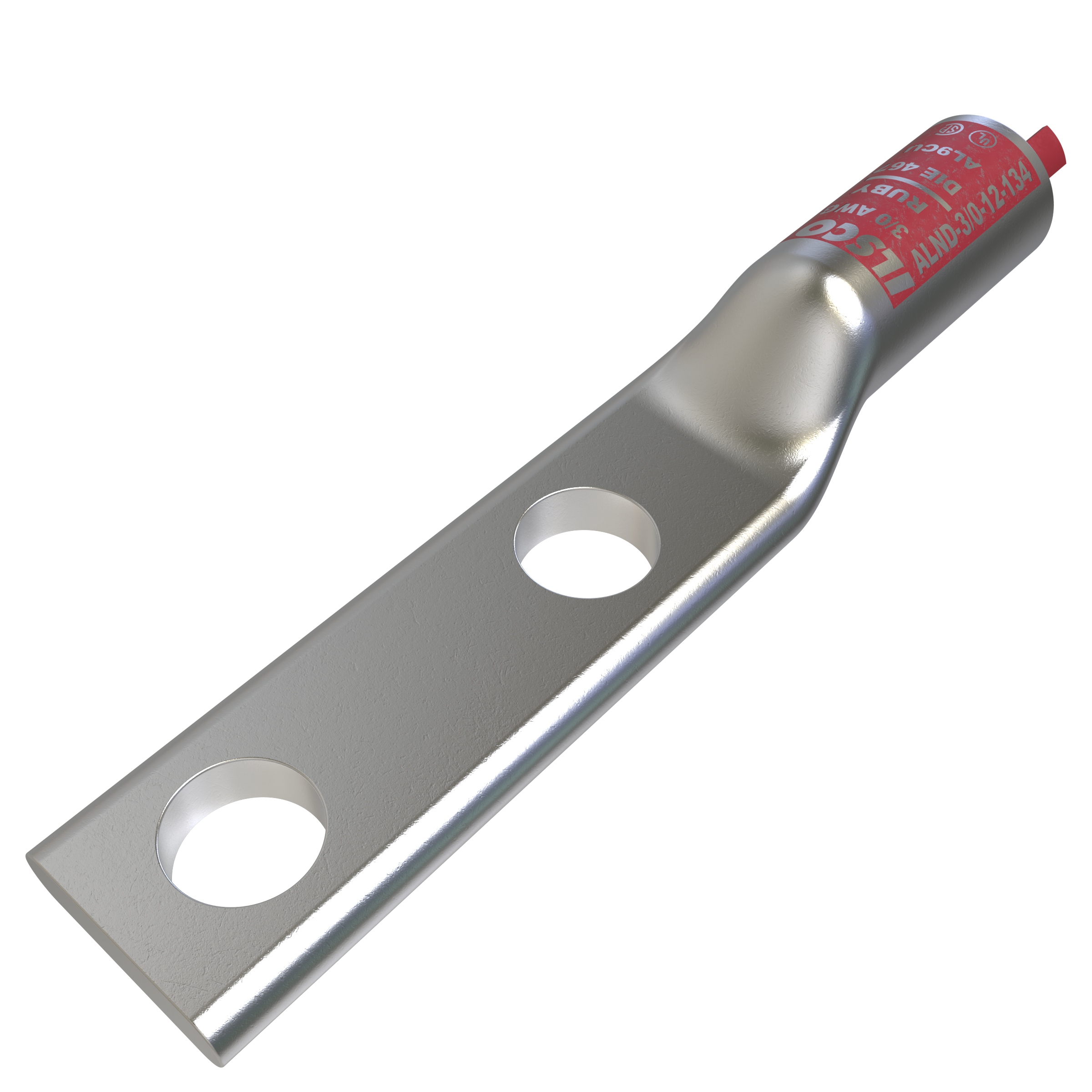

Ilsco ALND-3/0-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 3/0, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALND-3/0-12-134 | Codale Part # 4204691
$38.59/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 3/0 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Ruby, primary color Silver, die index 467,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
1.355 in
Barrel Type
Long
Color Coding
Ruby
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:5.085;W:1.044;H:0.801 IN
Strip Length
36.004 mm
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669690743
Color
Silver
Product UPC
78366969074
Weight
0.109 lb

Dimensions

Height
0.81 Inch
Inside Diameter
0.495 in
Length
5.085 Inch
Outside Diameter
0.761 in
Width
1.044 in
