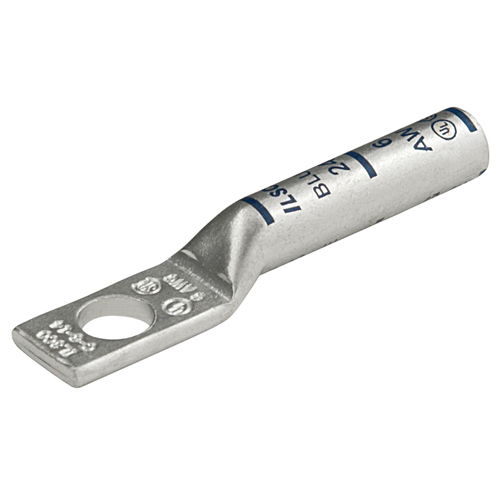

Ilsco CLNS-4/0-12 SureCrimp® Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLNS-4/0-12 | Codale Part # 4204868
$14.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4/0 Str, Contains DE-OX®, no sight window, Square tang end, flex conductor range 3/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Purple, primary color Silver, die index I-54,

Technical Information

Applications
Terminating Connector
Barrel Length
1.5 in
Barrel Type
Long
Bolt Size
1/2 IN
Color Coding
Purple
Conductor Material
Copper
Conductor Size
4/0 AWG
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.562 in
Number of Holes
1 Hole
Size
L:3.241;W:0.999;H:0.727 IN
Standard
CSA,E2186,UL
Strip Length
39.674 mm
Temperature Rating
90 degrees C
Type
CLNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669639667
Color
Silver
Product UPC
78366963966
Weight
0.130 lb

Dimensions

Height
0.727 Inch
Inside Diameter
0.546 in
Length
3.241 Inch
Outside Diameter
0.687 in
Width
0.999 in
