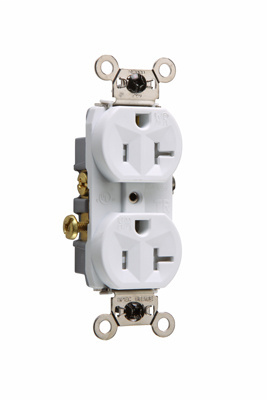

Product image for Pass & Seymour WR20-TRW White Weather Resistant Commercial Grade Receptacles
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour WR20-TRW White Weather Resistant Commercial Grade Receptacles

Manufacturer: Legrand Pass & Seymour | Catalog # WR20TRW | Codale Part # 4205195
$22.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Weather-Resistant Commercial Grade Receptacles, 20 amp, 125 volts, Ivory, WR20TRI

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
1500 V
Grade
Commercial
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x 1.130 W x 3.281 H In
Style
Duplex
Tc Connection
Side wire
Temperature Rating
-40 degrees C
Type
Non-Reversing
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007242577
Color
White
Finish
Matte
Product UPC
78500724257
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Auto-ground clip assures positive ground.
  • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
