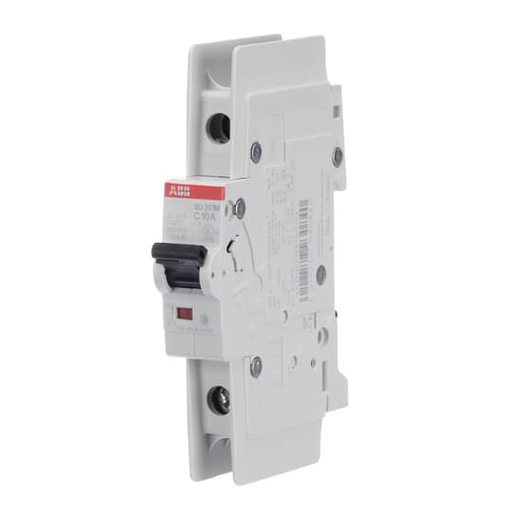

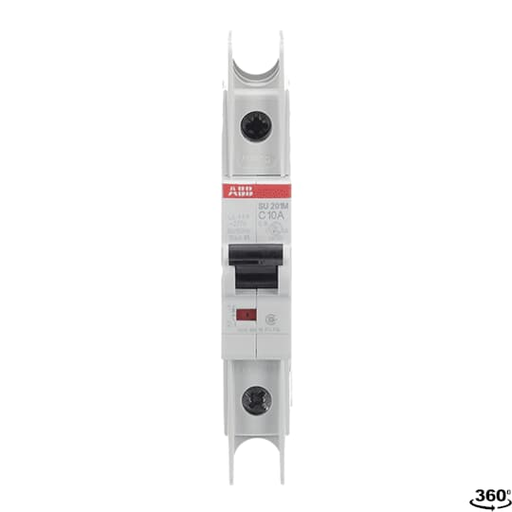

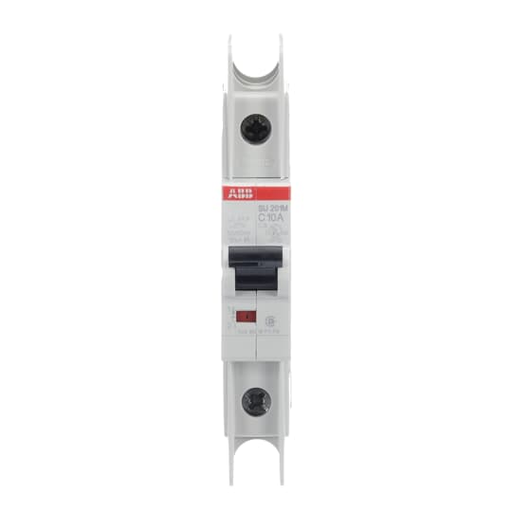

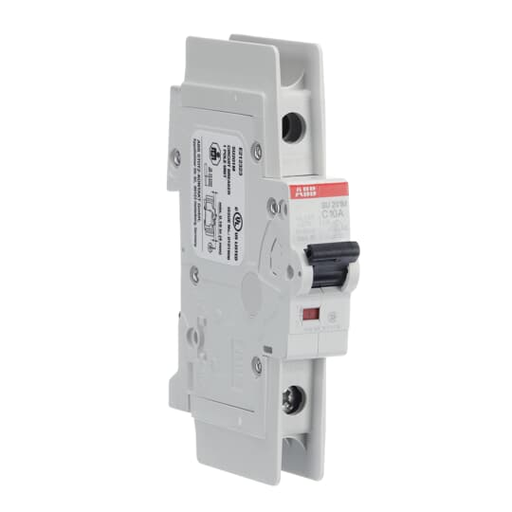

ABB SU201M-C10 UL489 MCB 1P C 10A 4

Manufacturer: ABB Inc. | Catalog # SU201M-C10 | Codale Part # 4205480
$73.62/ea
ea
Log in or register to view your price, purchase history, and more!
365 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet CAD Drawing #1
Miniature Circuit Breaker, Rated Current 10 Amps, 1 Pole, Interrupt Rating 10 kA, Trip Curve C, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
10 Amp
Applications
Branch Circuit Protection
Conductor Size
16-4 AWG
Current
10 Amp
Interrupt Rating
10 kAIC
Mounting Type
DIN Rail
Number of Poles
1 Pole
Operating Temperature
55 degrees C
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Type
C-Curve
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614422216
Environmental Conditions
3 Degree of Pollution
Product UPC
88861442221

Dimensions

Height
111 mm
Length
69 mm
Width
17.5 mm
