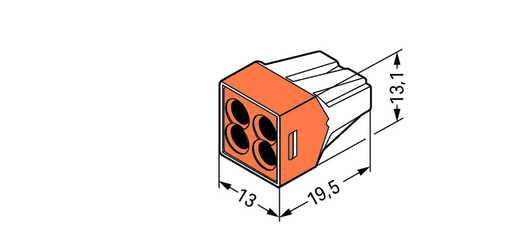

Product image for Wago 773-164 PUSH WIRE® 4-Port (ORANGE) Junction Box Wire Connector, #18-#12 Solid, #16-#12 Stranded (100/Box)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Wago 773-164 PUSH WIRE® 4-Port (ORANGE) Junction Box Wire Connector, #18-#12 Solid, #16-#12 Stranded (100/Box)

Manufacturer: Wago Wire Connectors | Catalog # 773-164 | Codale Part # 4206787
$26.09/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
4,802 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
PUSH WIRE® Connector for junction boxes for solid and stranded conductors; maximum 2.5 mm., 4-conductor, transparent housing; orange cover. Surrounding air temperature: maximum 60 deg C; 2.5 mm., multi-colored.

Technical Information

Actuator
Push-button
Conductor Material
Aluminum,Copper
Conductor Size
12 AWG
Current
24 Amp
Flamability Class
V2
Number of Connections
4
Operating Temperature
105 degrees C
Strip Length
0.47 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
4045454749644
Color
Multi-Colored
Product UPC
4045454749644
Weight
2.677 g

Dimensions

Depth
0.768 Inch
Height
0.516 Inch
Width
0.512 in

Certifications and Compliance

Country of Origin
Germany
Approvals
  • DEKRA Certification B.V., CSA, 15411 (LR46759), C22.2
  • UL International Germany GmbH, UL, E69654, UL 486C
Accessory Products
  • 249-130
  • 773-332
