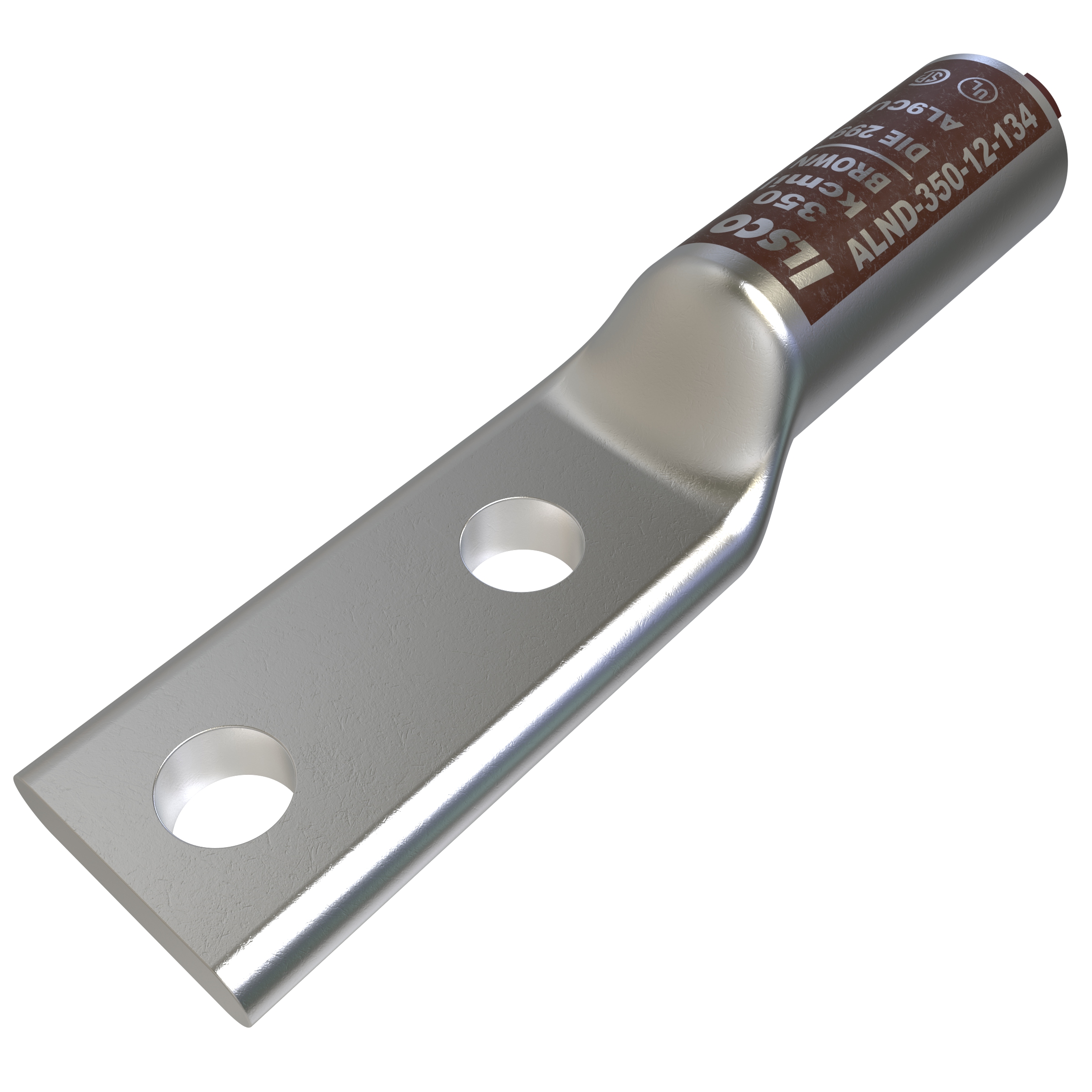

Product image for Ilsco ALND-350-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco ALND-350-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALND-350-12-134 | Codale Part # 4209289
$43.72/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 350 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index 299,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
2.353 in
Barrel Type
Long, Chamfered Entry
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
350 kcmil
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:6.065;W:1.516;H:1.145 IN
Strip Length
61.353 mm
Stud Size
1/2 in
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669687552
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366968755
Weight
0.28 lb

Dimensions

Height
1.145 Inch
Inside Diameter
0.72 in
Length
6.065 Inch
Outside Diameter
1.105 in
Overall Length
6.065 in
Width
1.516 in
