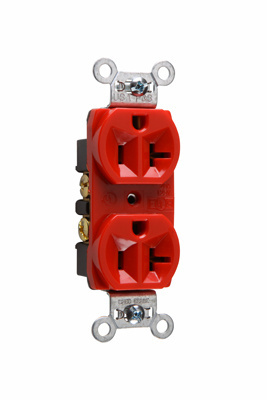

Pass & Seymour CRB5362-RED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Nylon Face Duplex Straight Blade Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # CRB5362-RED | Codale Part # 4211002
$25.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Construction Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Gray

Technical Information

Amperage
20 Amp
Applications
Construction
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Grade
Construction Specification
Material
Nylon
Mounting Type
Screw, Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007210279
Color
Red
Finish
Matte
Product UPC
78500721027
UNSPSC
39121406
Weight
0.1800 lb

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
