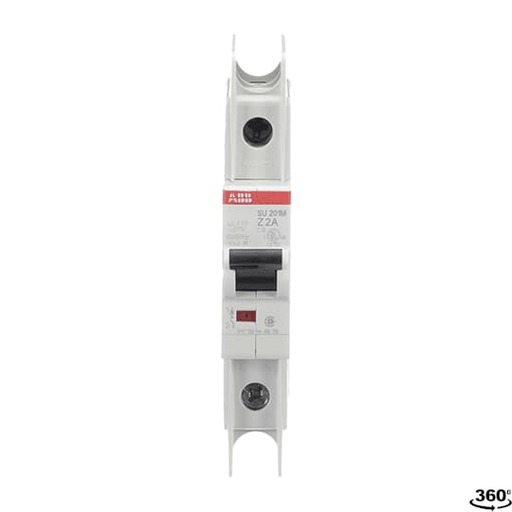

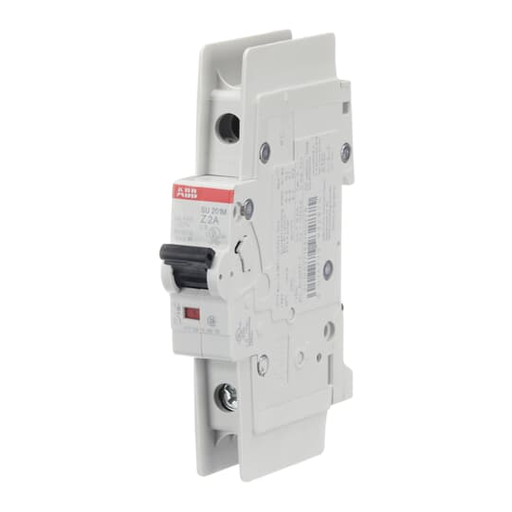

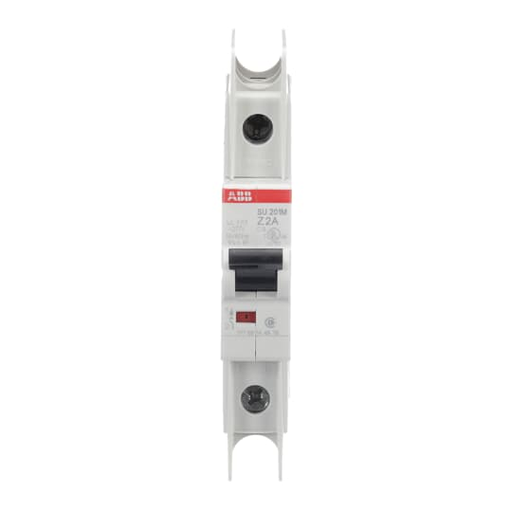

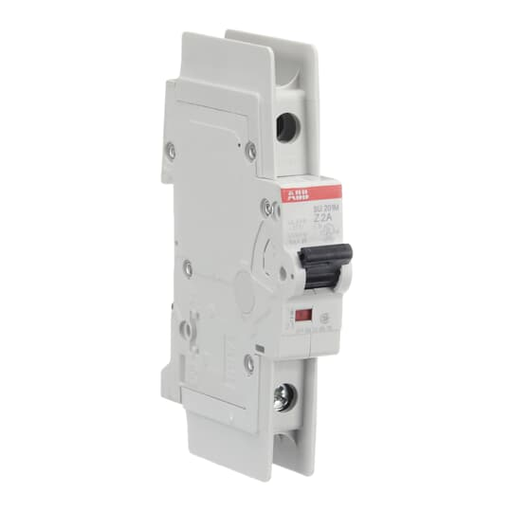

ABB SU201M-Z2 UL489 MCB 1P Z 2A 480

Manufacturer: ABB Inc. | Catalog # SU201M-Z2 | Codale Part # 4211040
$72.26/ea
ea
Log in or register to view your price, purchase history, and more!
600 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet CAD Drawing #1
Miniature Circuit Breaker, Rated Current 2 Amps, 1 Pole, Interrupt Rating 10 kA, Trip Curve Z, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
2 Amp
Applications
Branch Circuit Protection
Current
2 Amp
Interrupt Rating
10 kAIC
Number of Poles
1 Pole
Operating Temperature
55 degrees C
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Terminal Type
Screw Terminals
Trip Type
Z
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614424036
Product UPC
88861442403
Weight
0.2500 lb

Dimensions

Height
111 mm
Length
69 mm
Width
17.5 mm
