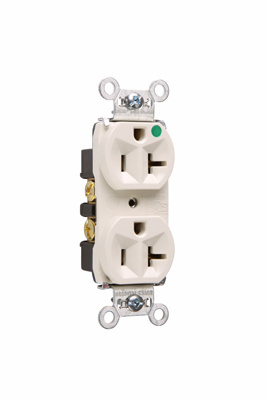

Product image for Pass & Seymour 8300-HLA Heavy-Duty Hospital Grade Compact Design Duplex Receptacle, Back & Side Wire, 20A 125V - Light Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 8300-HLA Heavy-Duty Hospital Grade Compact Design Duplex Receptacle, Back & Side Wire, 20A 125V - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # 8300HLA | Codale Part # 4211242
$63.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 20amp 125volt Brown

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Heavy-Duty Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Compact Design
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007830170
Color
Light Almond
Finish
Matte
Product UPC
78500783017
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,FEDSPEC
Country of Origin
USA
Features
  • Impact-resistant nylon face.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • Corrosion-resistant, zinc-plated steel strap is locked in.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
  • High strength thermoplastic back body.
  • Auto-ground clip assures positive ground.
  • Compact design for easy installation.
  • Tri-drive terminal and mounting screws.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
