Leviton 8430 250 Volt 30 Amp 3-Pole 4-Wire NEMA 15-30R 3 Hp Black Nylon Grounding Flush Mount Straight Blade Receptacle

Manufacturer: Leviton | Catalog # 8430 | Codale Part # 4211414
$146.82/ea
ea
Log in or register to view your price, purchase history, and more!
21 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 250 Volt, NEMA 15-30R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, 3-Phase Y, Side Wired, Steel Strap, - Black

Technical Information

Amperage
30 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wired
Device Type
Power Device
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Commercial
Grounding
Grounding
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Box

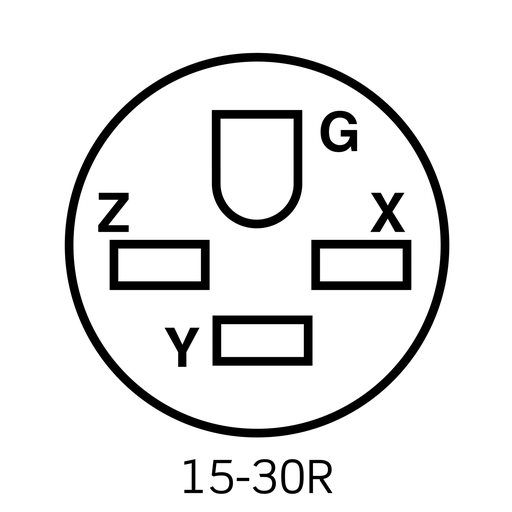

NEMA
15-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
3.75 H x 2.50 W x 2.10 D IN
Standard
ANSI C-73
Tc Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Power Receptacle
Voltage
250 Volt
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843307
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847784330
Weight
0.5000 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
NEMA
  • 15-30R
