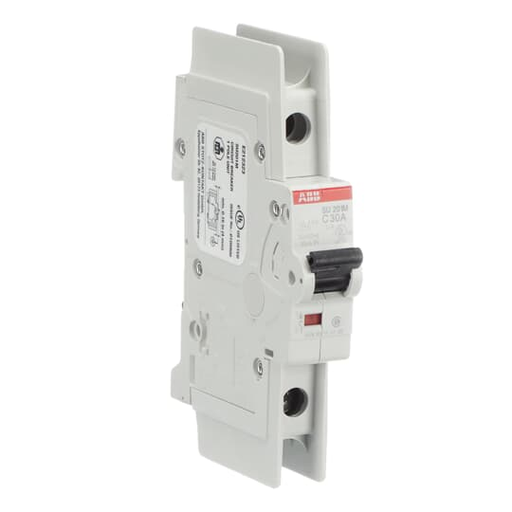

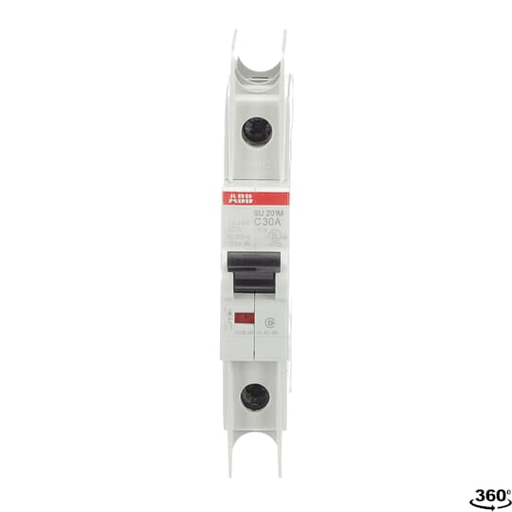

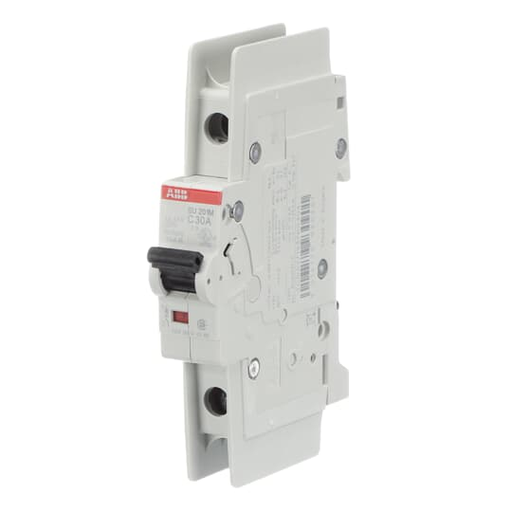

ABB SU201M-C30 UL489 MCB 1P C 30A 4

Manufacturer: ABB Inc. | Catalog # SU201M-C30 | Codale Part # 4211611
$66.65/ea
ea
Log in or register to view your price, purchase history, and more!
174 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet CAD Drawing #1
Miniature Circuit Breaker, Rated Current 30 Amps, 1 Pole, Interrupt Rating 10 kA, Trip Curve C, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
30 Amp
Applications
Branch Circuit Protection
Conductor Size
16-4 AWG
Current
30 Amp
Interrupt Rating
10 kAIC
Mounting Type
DIN Rail
Number of Poles
1 Pole
Operating Temperature
55 degrees C
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Type
C-Curve
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614422278
Environmental Conditions
3 Degree of Pollution
Product UPC
88861442227
Weight
1.0000 lb

Dimensions

Height
111 mm
Length
69 mm
Width
17.5 mm
