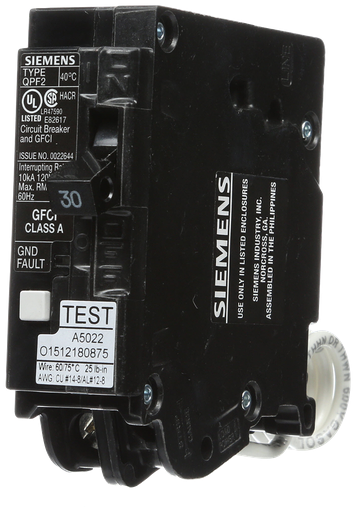

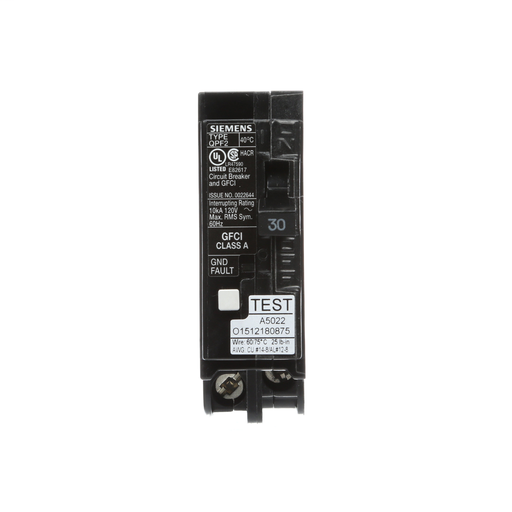

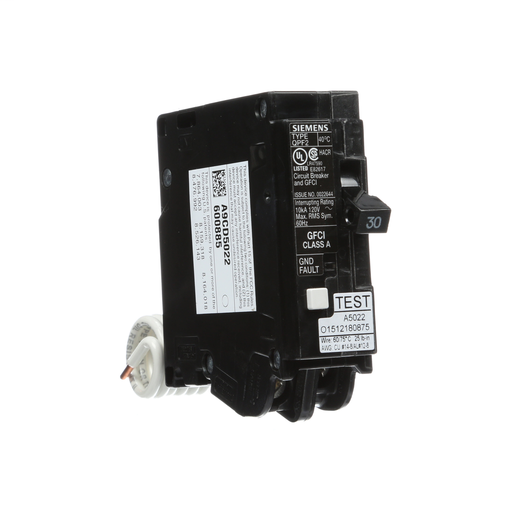

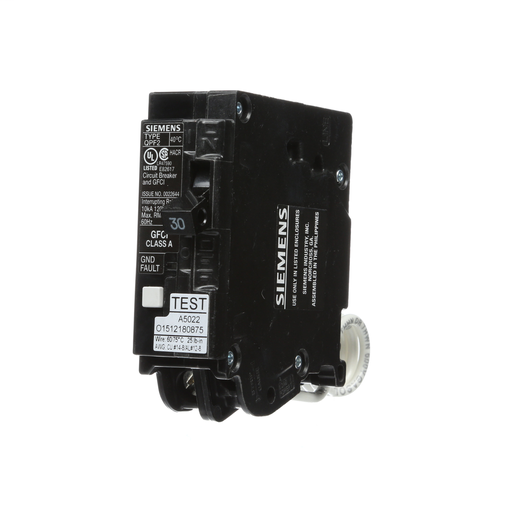

Product image for Siemens QF130A 1-Pole 30 Amp 120 VAC 10 kA Ground Fault Circuit Interrupter
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Siemens QF130A 1-Pole 30 Amp 120 VAC 10 kA Ground Fault Circuit Interrupter

Manufacturer: Siemens | Catalog # QF130A | Codale Part # 4211717
$120.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Type QPF2 Circuit Breaker,1P,120V,30A,10kA,Plug-in,1 Inch per Pole, GFCI 5mA, Class A Protection

Technical Information

Amperage
15 Amp
Applications
Construction
Conductor Size
12-8 AWG (AL)/14-10 AWG (CU)
Connection Type
Low Tab
Current
30 Amp
Frame
100 A
Frequency
50/60 Hz
Interrupt Rating
10 kAIC
Material
MOLDED CASE CIRCUIT BREAKER
Mounting Type
Panelboard
Number of Poles
1 Pole
Operating Temperature
40DEGC
Standard
CSA File Number LR18416,File Number E92074,UL
Tc Connection
PLUG-IN
Temperature Rating
40 degrees C
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
QPF2
Voltage
480/277 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SIEMENS

General Product Info

12-Digit UPC
887621216603
Product UPC
88762121660
Weight
0.330 lb

Dimensions

Height
7.4 Inch
Length
4.4 Inch
Width
7 in

Certifications and Compliance

Country of Origin
Philippines
