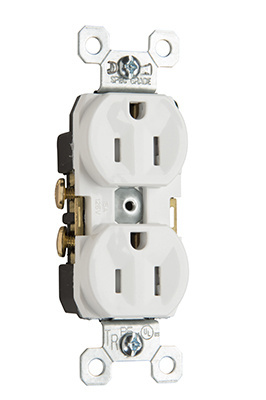

Pass & Seymour TR15-W Commercial Grade Tamper-Resistant Duplex Receptacle Side Wire 15Amp 125Volt, White

Manufacturer: Legrand Pass & Seymour | Catalog # TR15-W | Codale Part # 4212660
$10.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tamper-Resistant Commercial Grade Receptacle, 15A, 125V, BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
1500 V
Grade
Commercial
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x 1.130 W x 3.281 H In
Style
Duplex
Tc Connection
Side wire
Temperature Rating
-40 to 50 degrees C
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007241594
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Gloss
Product UPC
78500724159
UNSPSC
39121406

Dimensions

Depth
0.93 Inch
Height
3.28 Inch
Width
1.37 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive steel terminal screws. Side wire only.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Certifications
  • cULus Listed
