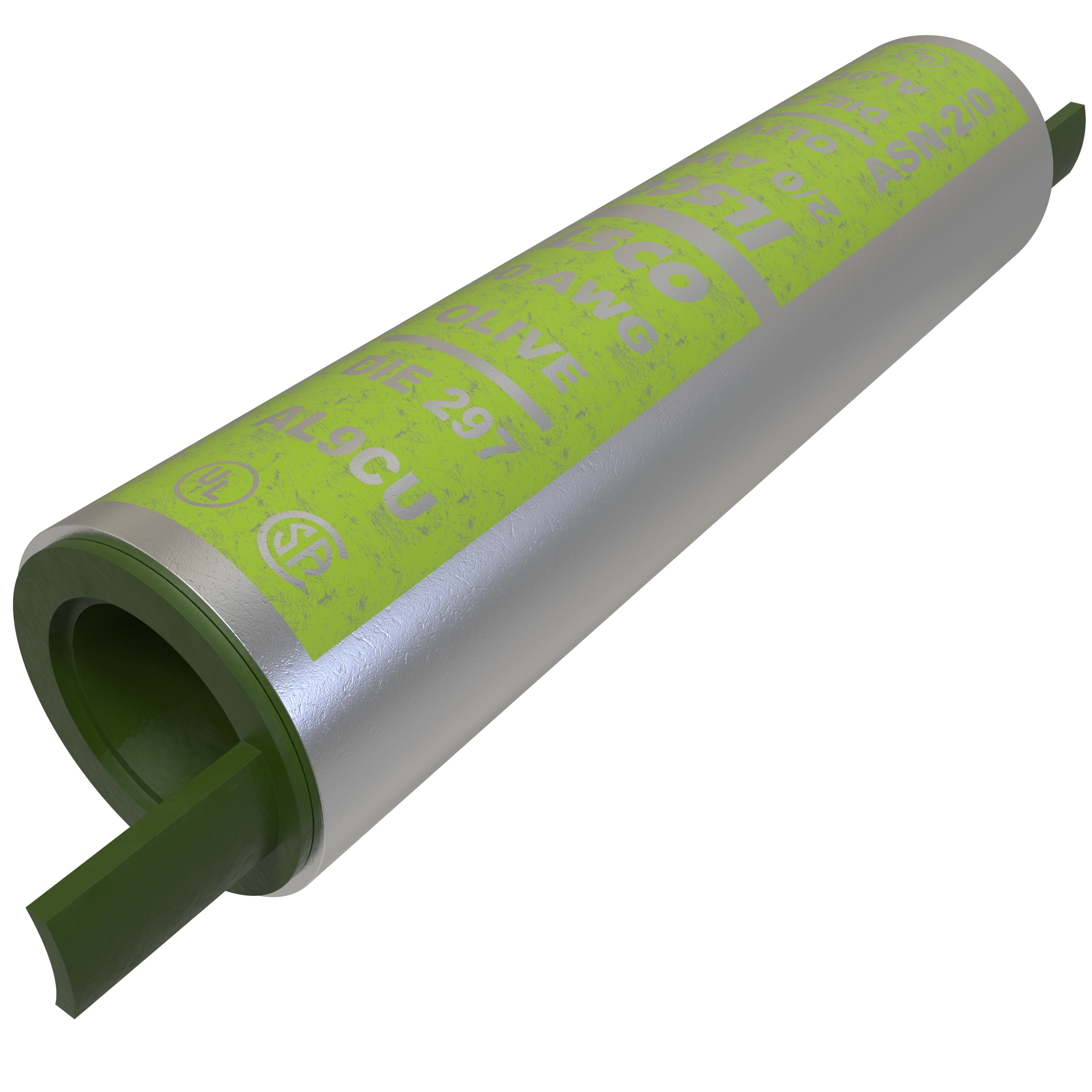

Product image for Ilsco ASN-2/0 SureCrimp® Aluminum Compression Sleeve, Conductor Size 2/0, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco ASN-2/0 SureCrimp® Aluminum Compression Sleeve, Conductor Size 2/0, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ASN-2/0 | Codale Part # 4212690
$22.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Sleeve, Compression connection, Dual Rated, Aluminum material, Tin plated connector, Standard Barrel, UL, CSA, Copper/Aluminum Primary Conductor 2/0 Str, Contains De-Ox®, 1 conductors, Dimensions 2.71 in x 0.674 in x 0.674 in, rated for 35 kV, die color code Olive, primary color(s) Silver,

Technical Information

Applications
Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used
Barrel Type
Standard
Color Coding
Olive
Conductor Material
Aluminum,Copper
Conductor Size
2/0 AWG
Conductor Type
Aluminum and Copper
Connection Type
Compression
Die Code
297
Material
Aluminum
Number of Conductors
1
Size
L:2.71;W:0.674;H:0.674 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Dual Rated, Chamfered Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669184778
Color
Olive
Finish
Electro-Tin Plated
Product UPC
78366918477
Weight
0.055 lb

Dimensions

Height
0.674 Inch
Inside Diameter
0.432 in
Length
2.71 Inch
Outside Diameter
0.674 in
Width
0.674 in
