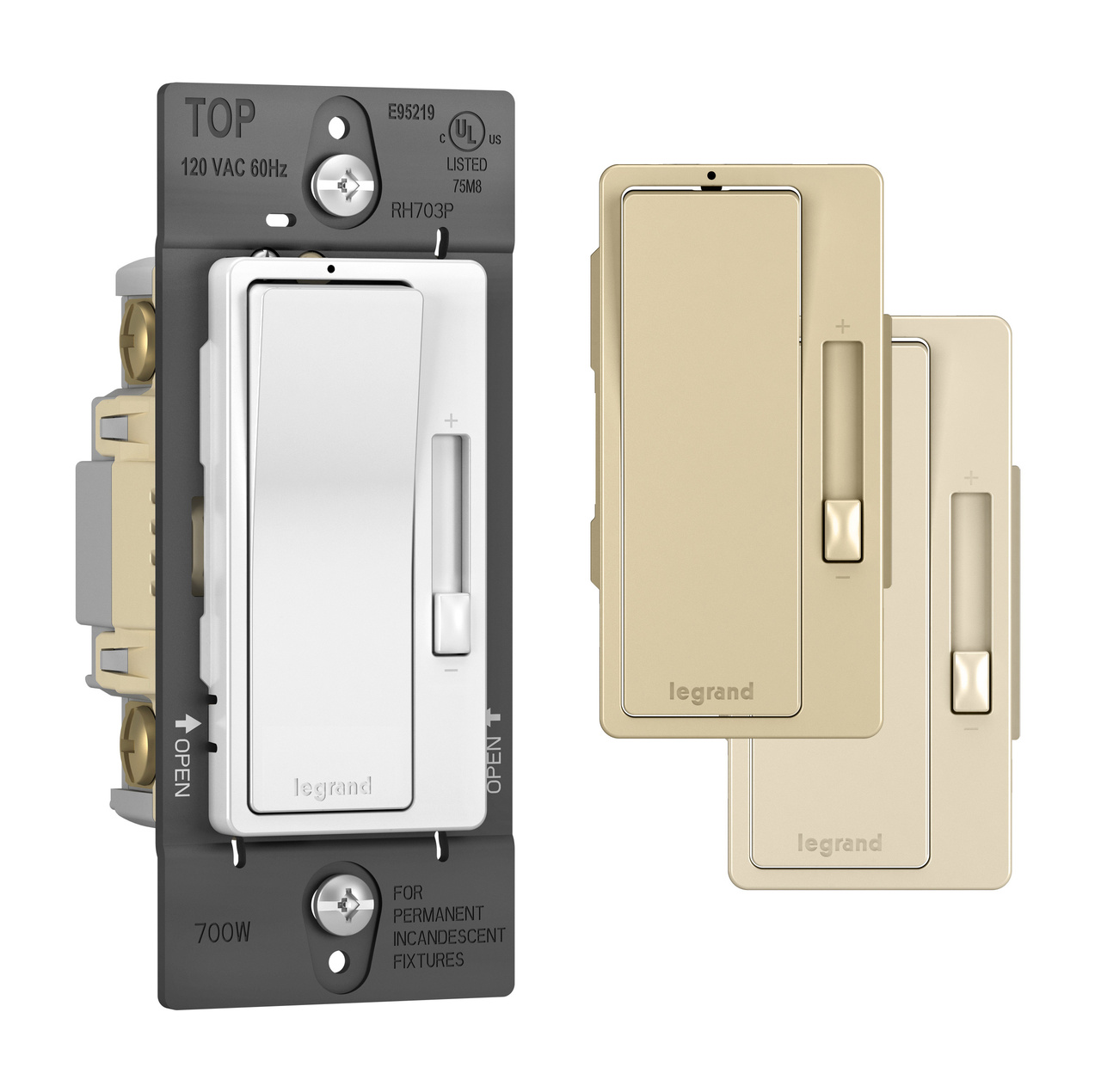

Pass & Seymour RH703PTC Radiant Incandescent Single Pole/3-Way Dimmer, 700W 120V - Tri-Color

Manufacturer: Legrand Pass & Seymour | Catalog # RH703-PTC | Codale Part # 4213270
$84.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Upgrade your space with superior dimming control and exceptional style. The radiant® Tru-Universal Dimmer works with virtually any 120V dimmable bulb or fixture, adjusting to the precise light level you want, without the flicker. Unsure what dimmer your bulb needs? Avoid uncertainty with Tru-Universal Dimming. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Action
Paddle/Slide
Actuator
Paddle switch with Slider
Amperage
15 Amp
Applications
For Residential Use
Bulb Compatibility
Incandescent
Connection Type
Screw Terminal
Enclosure
Thermoplastic
Frequency
120 Hz
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Power Rating
700 W
Switch Type
Paddle
Tc Connection
Screw Terminals
Type
1-Gang, 3-Way
Voltage
120 Volt
Wattage
700 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007053289
Color
Ivory,Light Almond,White
Environmental Conditions
0 - 95% Humidity
Finish
Matte
Product UPC
78500705328
Weight
0.350 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/4 Inch
Warranty Length
Limited Lifetime
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • UL Listed
  • cULus Listed
Features

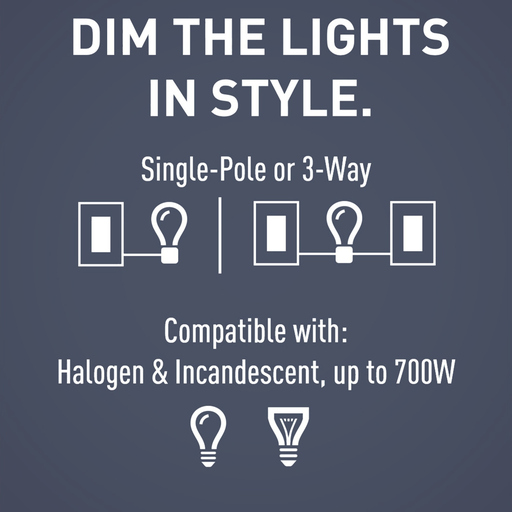

  • For use with incandescent bulbs and fixtures on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications.
  • Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Constant memory features returns lights to their previous level after a power failure or outage.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • Screw pressure plate back wire allows easier installation and fit into the wall box
  • Eliminates the need to derate LED bulbs when in multi-gang situations
  • For covering patents, see www.legrand.us/patents.
