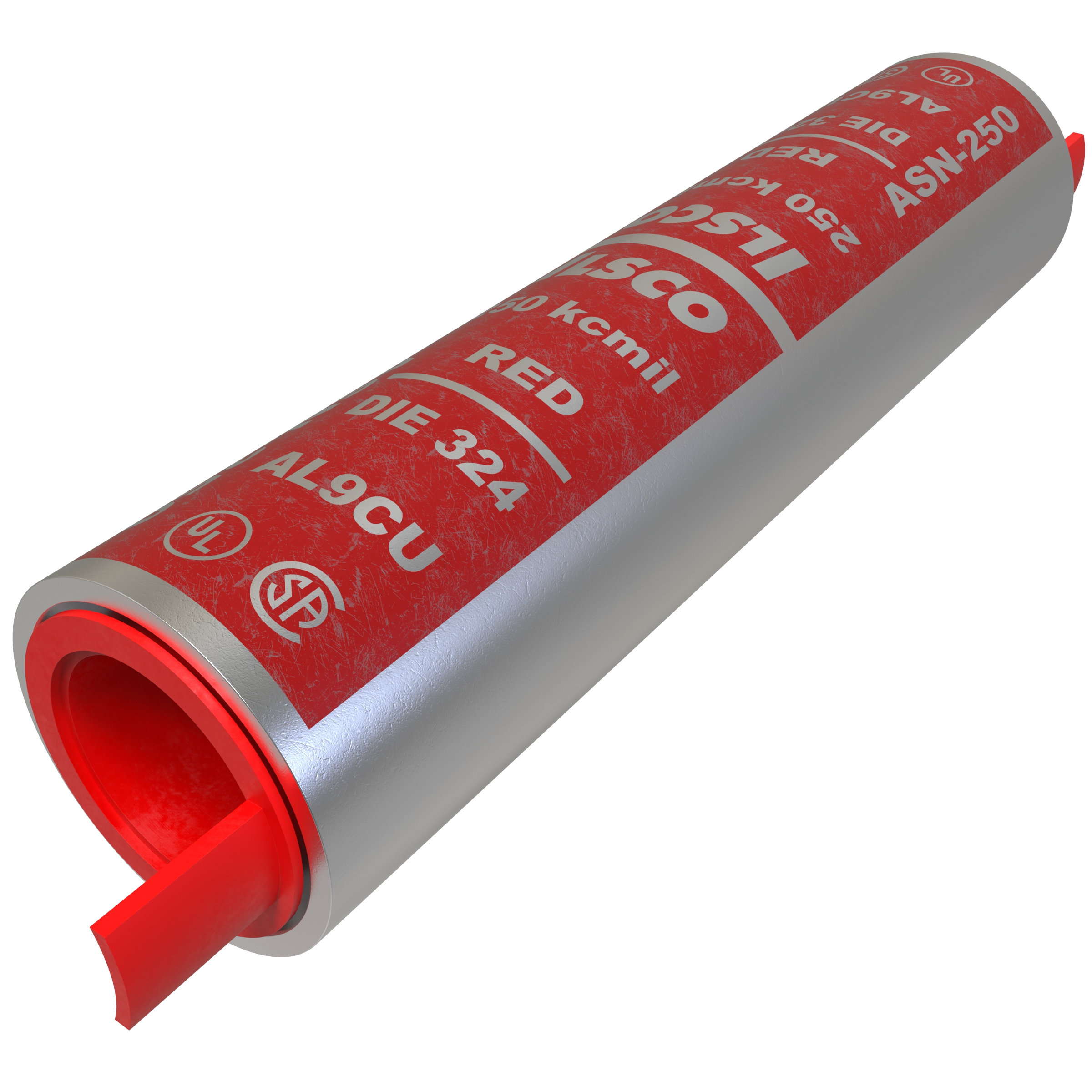

Product image for Ilsco ASN-250 SureCrimp® Aluminum Compression Sleeve, Conductor Size 250, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco ASN-250 SureCrimp® Aluminum Compression Sleeve, Conductor Size 250, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ASN-250 | Codale Part # 4213337
$28.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Sleeve, Compression connection, Dual Rated, Aluminum material, Tin plated connector, Standard Barrel, UL, CSA, Copper/Aluminum Primary Conductor 250 kcmil, Contains De-Ox®, 1 conductors, Dimensions 3.735 in x 0.924 in x 0.924 in, rated for 35 kV, die color code Red, primary color(s) Silver,

Technical Information

Applications
Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used
Barrel Type
Standard
Color Coding
Red
Conductor Material
Aluminum,Copper
Conductor Size
250 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Compression
Die Code
324
Material
Aluminum
Number of Conductors
1
Size
L:3.735;W:0.924;H:0.924 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Dual Rated, Chamfered Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669184808
Color
Red
Finish
Electro-Tin Plated
Product UPC
78366918480
Weight
0.141 lb

Dimensions

Height
0.924 Inch
Inside Diameter
0.595 in
Length
3.735 Inch
Outside Diameter
0.924 in
Width
0.924 in
