Burndy 1PLD6002 UV Rated Black UNITAP™, 2, #4 - 600, 256 in L, 3 in, UV Rated Plastisol covered AL6061-T6 aluminum body saves time by eliminating the need for taping

Manufacturer: Hubbell-Burndy | Catalog # 1PLD6002 | Codale Part # 4214458
$124.48/ea
ea
Log in or register to view your price, purchase history, and more!
29 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
UV Rated Black UNITAP™, 2, #4 - 600, 2.56 in L, 3 in, UV Rated Plastisol covered AL6061-T6 aluminum body saves time by eliminating the need for taping.

Technical Information

Applications
For Indoor Use Only, Copper Or Stranded Aluminum
Conductor Size
1 AWG
Connection Type
Multi Tap
Direct Burial?
No
Insulation Type
Plastisol
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size

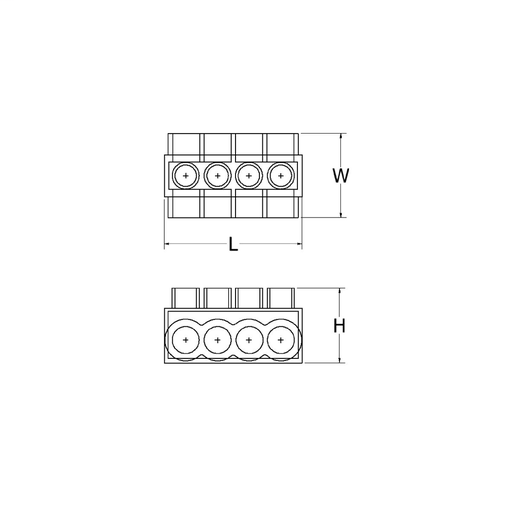

2.75 IN Height X 3 IN Width X 2.56 IN Length
Temperature Rating
194
Type
BIBD, Multi-Port
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810287330
Product UPC
78181028733
Weight
0.500 lb

Dimensions

Height
2-3/4 Inch
Length
2.72 Inch
Overall Length
69 mm
Width
3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Range-taking capability reduces the number of connectors necessary to carry in inventory
