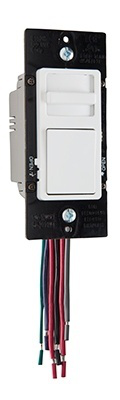

P&S WS4FBL3PW WIDESLIDE 0-10V FL/LE

Manufacturer: Legrand Pass & Seymour | Catalog # WS4FBL3P-W | Codale Part # 4214581
$262.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
For use on 0-10V, 4-wire, 120V & 277V fluorescent dimming ballasts and LED fixtures.

Technical Information

Amperage
10 Amp
Applications
For Residential and Commercial Applications
Connection Type
Wire Lead
Enclosure
Thermoplastic
Frequency
120 Hz
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
0 - 40 degrees C
Power Rating
450 W
Style
Decorator
Tc Connection
Wire Leads
Type
Decorator
Voltage
120 Volt
Wattage
450 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Wide Slide

General Product Info

12-Digit UPC
785007047738
Color
White
Environmental Conditions
0 - 95% Humidity
Finish
Matte
Product Series
Wide Slide
Product UPC
78500704773

Dimensions

Depth
1-1/4 Inch
Height
4-1/4 Inch
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • For use with 0-10V, 4 wire, 120V 10A/277V 5A LED and fluorescent dimming drivers/ballasts
  • Convenient operation combines ON/OFF Decorator switch with separate slider for dimming control
  • Low voltage pig tails labeled separately
  • Preset, Single Pole and 3-Way Operation
  • Green LED glows when OFF to make dimmer easy to find in the dark
  • Sleek, ergonomic Pass and Seymour Decorator style matches other Decorator devices
  • Wider slide control for easier dimming operation
  • Built-in power pack included
Certifications
  • cULus Listed
