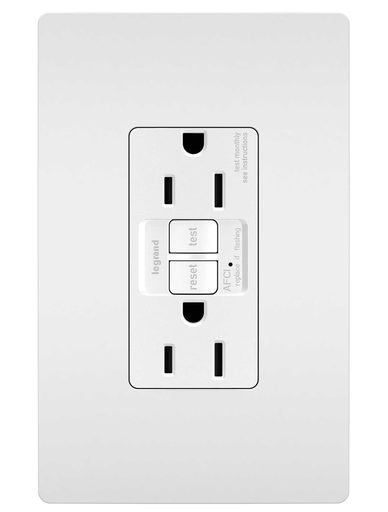

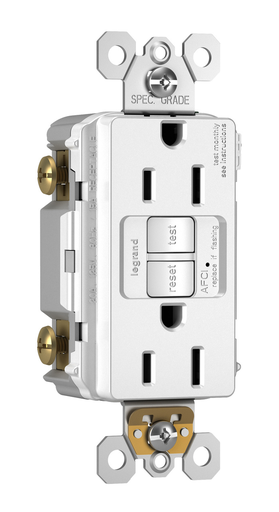

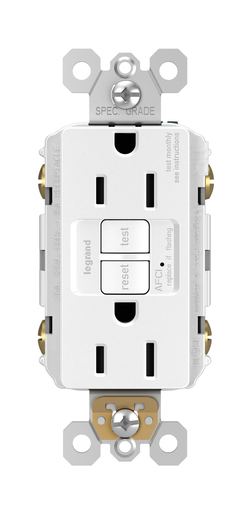

Product image for Pass & Seymour AF152TRW 15A AFCI Receptacle, Tamper-Resistant, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour AF152TRW 15A AFCI Receptacle, Tamper-Resistant, White

Manufacturer: Legrand Pass & Seymour | Catalog # AF152TRW | Codale Part # 4214645
$51.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
15A 125V Tamper-Resistant Arc-Fault Circuit Interrupter, White

Technical Information

Actuator
Control Circuit
Amperage
15 Amp
Applications
For Residential/Commercial use
Connection Type
Back and Side Wire
Frequency
60 Hz
Grade
Residential/Commercial
Interrupt Rating
4.0 A
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
2 Pole
Outlet Type
AFCI,Indoor,Residential,Tamper-Resistant
Tc Connection
Back and side wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Tamper-Resistant Outlet Branch Circuit
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007127829
Color
White
Product UPC
78500712782
Weight
0.3500 lb

Dimensions

Depth
1.36 Inch
Height
4.2 Inch
Width
1.25 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
China
Features
  • Protects against fire caused by arc-fault occurrences. Unlike breaker alternatives, AFCI outlets make it easier to fix trips with a convenient reset button on the outlet.\
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.\
  • For more information on AFCI outlets, visit:www.afcisafetyreceptacles.org\
  • Extends protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.\
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.\
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.\
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.\
Certifications
  • UL Listed
  • CSA Listed
