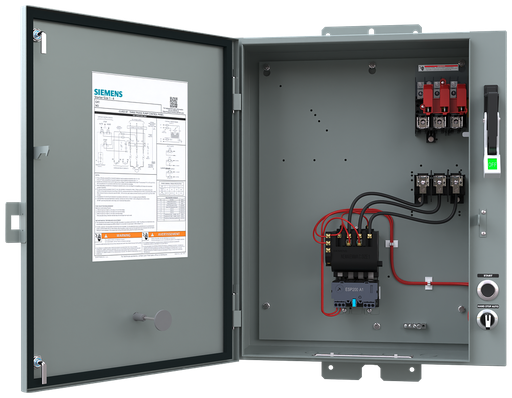

Siemens 87DUD6FC PumpPanel SZ1,5.5-22Am

Manufacturer: Siemens | Catalog # 87DUD6FC | Codale Part # 4214792
$2,487.12/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Pump control panel, Size 1, H2 Solid-state overload relay, OLR amp range 5.5-22A, 220-240/440-480VAC 60Hz coil, Standard type contactor, 30A fusible disconnect, 30A/600V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Technical Information

Amperage
27 Amp
Applications
Motor Controls
Connection Type
Screw
Load Capacity
5 hp
Motor Power
10 hp
Mounting Type
Surface
NEMA
3,3R
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Cycles
10000000
Power Supply
600 V
Reset Type
Auto/Manual/Remote
Size
29 x 20 x 8 in.
Standard
UL,CSA
Tc Connection
Screw
Type
Pump Controller
Voltage
220 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Class 87 Pump Panel

General Product Info

12-Digit UPC
662643536133
Product UPC
66264353613
Weight
47.000 lb

Certifications and Compliance

Country of Origin
Mexico
