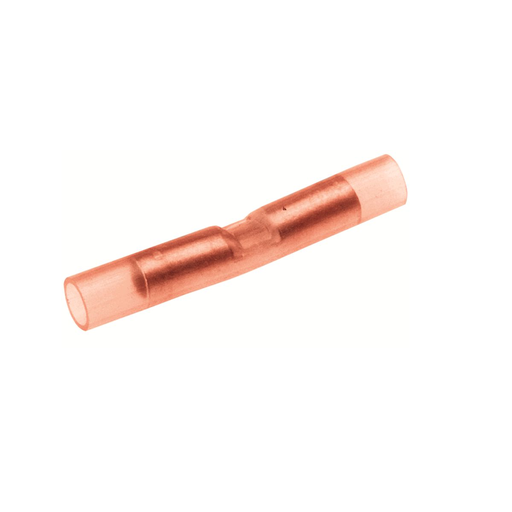

Burndy SN18 Cu Butt Splice, Smooth Funnel Entry, 18-22 AWG, 600 V, 125" L, Nylon Insul, Integral bbl, Tin Plated, Red(Insul Color)

Manufacturer: Hubbell-Burndy | Catalog # SN18 | Codale Part # 4215410
$5.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Cu Butt Splice; Smooth Funnel Entry; 18-22 AWG; 600 V; 1.25" L; Nylon Insul; Integral bbl; Tin Plated; Red(Insul Color)

Technical Information

Applications
For Heavy Duty Application Requirements
Color Coding
Red
Conductor Size
18 AWG
Connection Type
Seamless Butt Splice
Insulated?
Yes
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Unplated
Size
1.25 IN Maximum Insulation Length X 0.115 IN Maximum Insulation Diameter
Strip Length
15/64 in
Temperature Rating
105
Type
SN
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810736944
Color
Black
Finish
Tin Plated
Product UPC
78181073694
Weight
0.0030 lb

Dimensions

Height
0.2 Inch
Length
1-1/4 Inch
Overall Length
32 mm
Width
0.20 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Seamless tubing, high quality design without seams to split
  • Electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properies
  • Tin plating provides durable long-lasting resistance to corrosion
  • Positive center wire stop for proper depth of wire insertion
  • Nylon is locked into position
