HWDK 5462LA RCPT, DUP, COMM, 20A 25

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5462LA | Codale Part # 4218070
$29.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

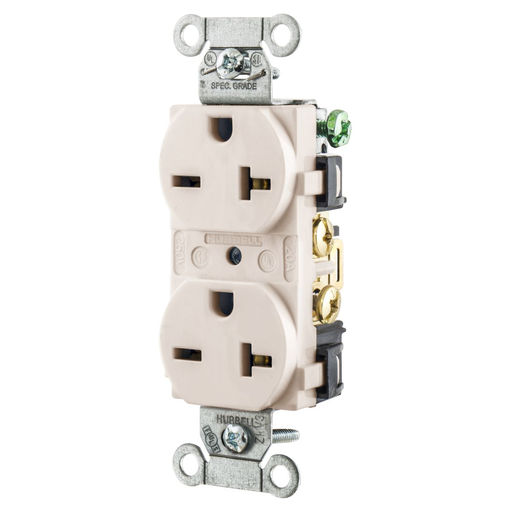

Straight Blade Devices, Receptacles, Duplex, Heavy Duty Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Light Almond

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
NEMA
6-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Type
Standard Duplex
Wattage
5000 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585555942
Color
Almond
Product Series
Hubbell-PRO
Product UPC
78358555594
Weight
0.2 lb

Dimensions

Height
1.7 Inch
Length
4.3 Inch
Width
2.0 in

Certifications and Compliance

Country of Origin
China
Features
  • Back and side wired
  • Fed- Spec UL listed
  • Smooth nylon face, Brass triple-wipe contacts
  • Self Grounding
