Hubbell USB15A5W Receptacle DUP 15A 125V 5A 5V USB PORT A WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB15A5W | Codale Part # 4218409
$60.20/ea
ea
Log in or register to view your price, purchase history, and more!
123 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

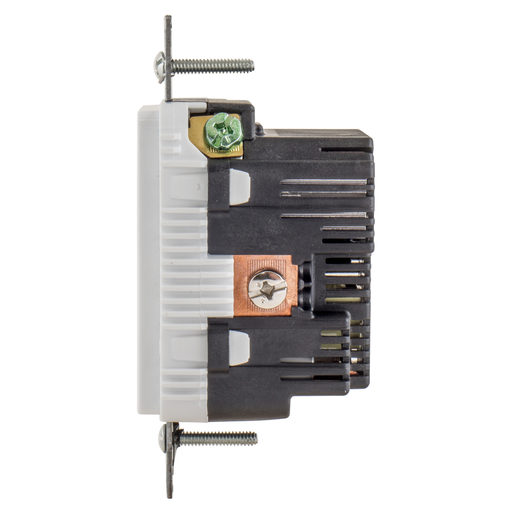

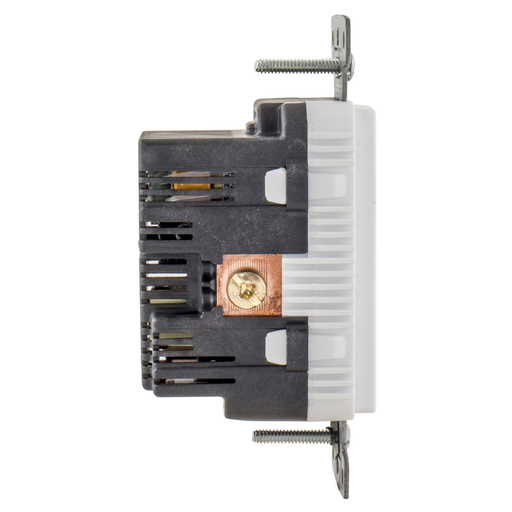

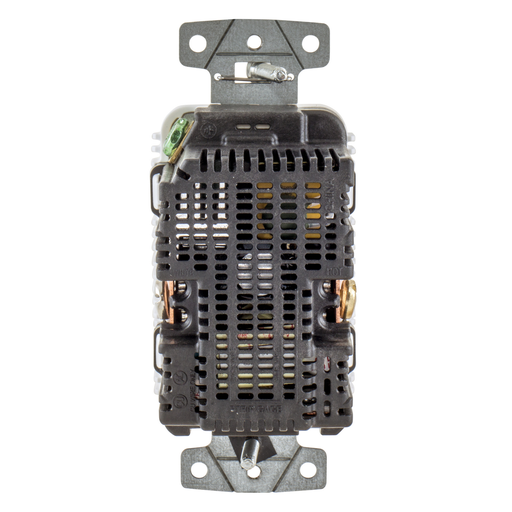

USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 2) 5A USB Ports, White

Technical Information

Amperage
15 Amp
Applications
USB Charging/Power
Current
15 Amp
Material
Composite;Other
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Style
Style Line Decorator
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 VAC
Wattage
1875 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778306891
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty
Product UPC
88377830689
Weight
0.3800 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.100 in

Certifications and Compliance

Country of Origin
China
Features
  • High Power 5 Amp, 5 Volt USB Output
  • Two Type A USB Ports
  • Tamper Resistant Commercial Grade Duplex Compatible
  • USB Ports Rated 10,000 Cycles
