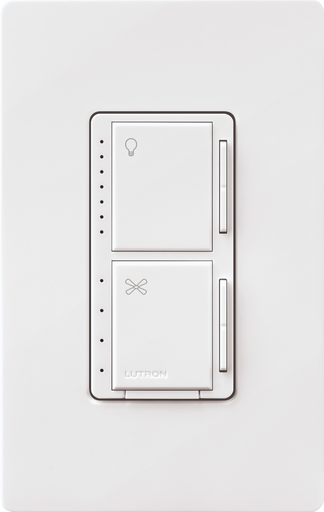

Lutron MACL-LFQ-WH MACL FAN LIGHT WHIT

Manufacturer: Lutron Electronics | Catalog # MACL-LFQ-WH | Codale Part # 4219161
$86.98/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Maestro LED+ Fan/Light Control, Single-pole, 120V/75W Dimmable LED or 250W Incandescent/Halogen light, 1.5A fan in White, ED Box packaging

Technical Information

Actuator
Tapswitch
Amperage
1.5 Amp
Applications
Lighting and Fan Control
Connection Type
Screw Terminal
Contact Configuration
NO
Contact Rating
1.5 A
Enclosure
Plastic
Enclosure Material
Plastic
Material
Plastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Power Rating
75 W Dimmable LED/CFL or 250 W Incandescent/Halogen Light
Size
2.94 in
Tc Connection
Screw terminal
Type
Digital Preset, Tapswitch
Voltage
120 Volt
Wattage
250 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276239523
Color
White
Finish
Gloss
Product UPC
78427623952

Certifications and Compliance

Country of Origin
China
Features

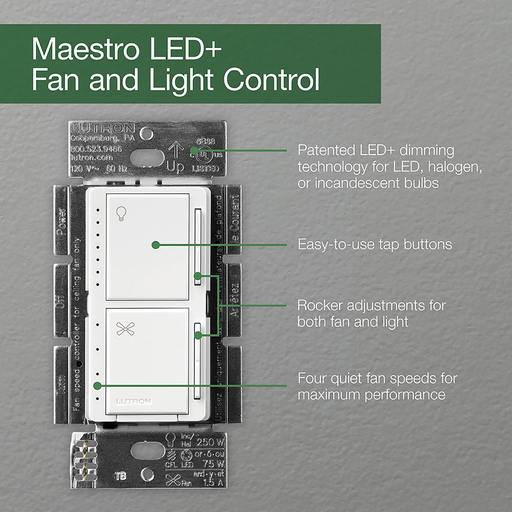

  • Includes (1) Lutron Maestro Dual Combination LED+ Dimmer and 4-Speed Fan Control; Gloss Finish
  • Rated for 1.5A Ceiling Paddle Fan and up to 75W of dimmable LEDs or 250W of Incandescent/Halogen bulbs
  • For use with 1 ceiling paddle fan per control; not compatible with fans with proprietary remotes
  • No Neutral Required; 120V
  • Single Pole; Screw Terminal and Wire lead installation
  • Separate wires for light and fan required; No canopy module required
  • 4 quiet fan speeds: Low, Medium, Medium/High, High
  • Simple button programming for low-end trim adjustment on LED+ dimmer
  • Tap once to toggle light or fan ON/OFF, Double-tap to turn lights on to full intensity, or press & hold for delayed fade-to-off on the lights
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Dimmer (top) Tap on dimmer to preset light level; tap off
  • Tap twice for full on
  • Touch rocker to adjust light level
  • Fan control (bottom) Tap on to preset fan speed; tap off
  • Touch rocker to adjust speed
  • 4-quiet fan speeds plus off provide enhanced comfort
  • Designed to prevent motor hum
  • For use with only one fan/light.
Standards and Certifications
  • UL
  • CSA
