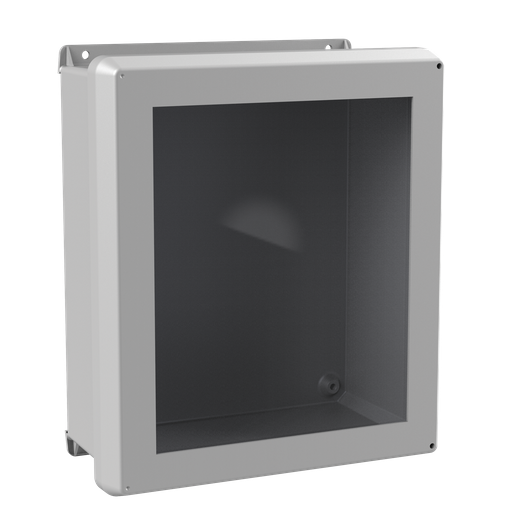

Product image for Hoffman HJB1412HWPL2LG Flat Cover with Latches, Type 4X, 13.81x 11.81x 5.99, Fiberglass
Image thumbnail 0
Image thumbnail 1
Email

Hoffman HJB1412HWPL2LG Flat Cover with Latches, Type 4X, 13.81x 11.81x 5.99, Fiberglass

Manufacturer: nVent Hoffman | Catalog # HJB1412HWPL2LG | Codale Part # 4219561
$575.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Enclosures feature a flat, overlapping cover design that ensures a more-secure seal. Available with solid and window covers. Latches provide easy access and security.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Color Coding
RAL 7035
IP Rating
66
Material
Fiberglass
Number of Latches
2
Size
15.32x13.30x6.70 in
Standard
1,12,13,3R,4,4X,CSA File No. 217184: Type 3,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Per UL 508A,File No. E54315,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Style
Window
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
HJ H Series

General Product Info

12-Digit UPC
783510159153
Color
Light Gray
Finish
Matte
Product UPC
78351015915
Weight
8.8 lb

Dimensions

Depth
5.99 Inch
Height
13.81 Inch
Length
15.8 Inch
Thickness
3.6 mm
Width
11.81 in
DISK UNSPSC
39121324
Features
  • Compression-molded fiberglass construction
  • Overlapping solid- and window-cover models are available
  • Windows are clear polycarbonate
  • Cover fastens with padlockable Type 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact
