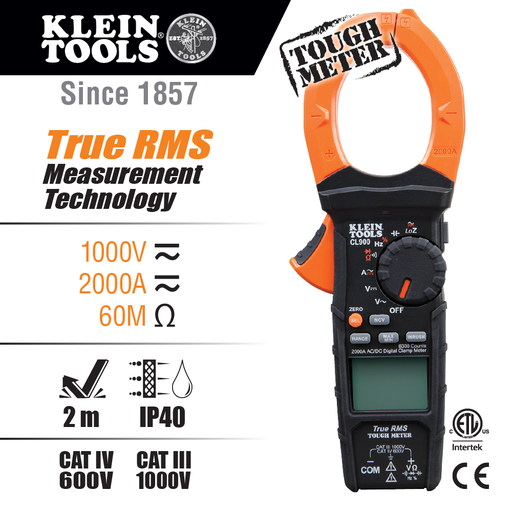

Klein CL900 Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp

Manufacturer: Klein Tools | Catalog # CL900 | Codale Part # 4219834
$189.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet MDM Safety Data Sheet
The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.

Technical Information

Applications
Measures Current To 2000A AC/DC
Battery Type
(2) AAA
Current
2000 Amp
Display Type
LCD
Frequency
500 kHz
Material
Electrical Components,Plastic
Number of Rows
2
Type
Digital
Voltage
1000 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644692352
Product UPC
09264469235
Weight
1.100 lb

Dimensions

Depth
10.43 Inch
Height
1.7 Inch
Length
10.39 Inch
Overall Length
10.39 in
Width
3.90 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features
  • Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
  • Rugged Klein \"TOUGH METER\" industrial design stands up to jobsite demands; built to withstand a 6.6-foot (2m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
  • Backlit display for clear visibility in environments with low ambient lighting
  • Dedicated mode for capturing Inrush Current
  • Non-contact voltage tester integrated into the clamp
  • Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
  • Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
  • Clamp measures AC and DC current
  • Powers off automatically after 30 minutes of non-use to conserve battery life
  • Low battery indicator and easily accessible battery compartment

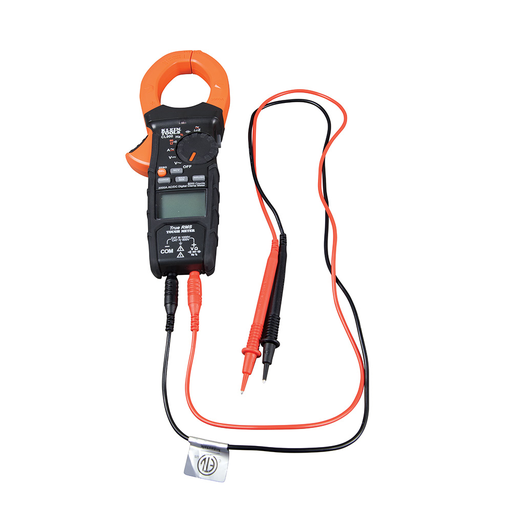

  • Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
  • Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester
  • Rugged Klein \"TOUGH METER\" industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
  • Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
Warnings
  • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use
  • Before each use, verify meter operation by measuring a known voltage or current
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed
