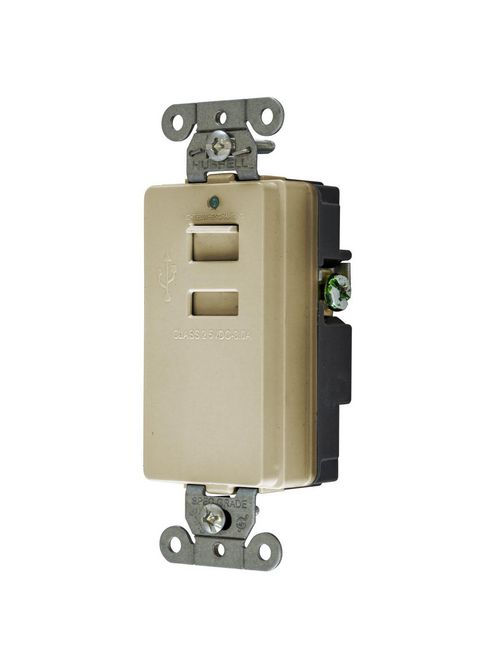

Product image for HCI USB2I USB CHRGR 2 PORT 3A 5 V I
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

HCI USB2I USB CHRGR 2 PORT 3A 5 V I

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB2I | Codale Part # 4219954
$53.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Dual USB Type 2.0 Ports 3 Amp 5 Volt DC,Style Line Decorator, 125V, 2-Pole 3-Wire Grounding, Ivory

Technical Information

Amperage
3 Amp
Applications
Industrial, Commercial and Residential
Conductor Size
14-12 AWG
Grade
Industrial, Commercial and Residential
Material
Thermoplastic
Mounting Type
Screw
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Style
Style Line Decorator
Tc Connection
Terminal Screws
Type
Decorator, USB Type-A
Voltage
5 Volt
Wattage
375 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade USB Charger Receptacle

General Product Info

12-Digit UPC
883778305207
Color
Ivory
Product UPC
88377830520
Weight
0.3000 lb

Dimensions

Height
1.31 Inch
Length
4.12 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Dielectric Voltage - Withstands 1,500V minimum
  • Electrical - Feed-Through - Circuit feed-through 20 Amp, 125 Volt
  • Electrical - Rating - 3A, 5V DC
  • Environmental - Flammability - UL 5VA
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Mechanical - USB Port - Stainless steel Rated for 10,000 plug insertions and removal
Features
  • Compact depth for use in raceway, delivery systems and where space is limited
  • LED Indicator, Shallow Profile
  • 2 stainless steel ports rated for 10,000 insertions and removals
  • Switch activated port door; when open enables power; when closed, all power is switched off, for a zero no-load draw
  • Bidirectional clamp wiring allows horizontal or back entry of solid or stranded wire
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
