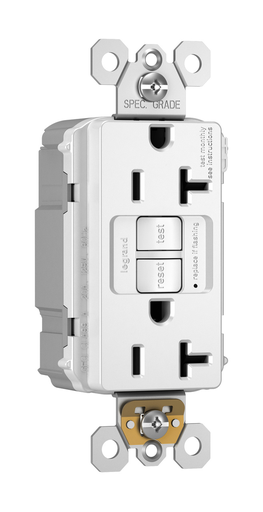

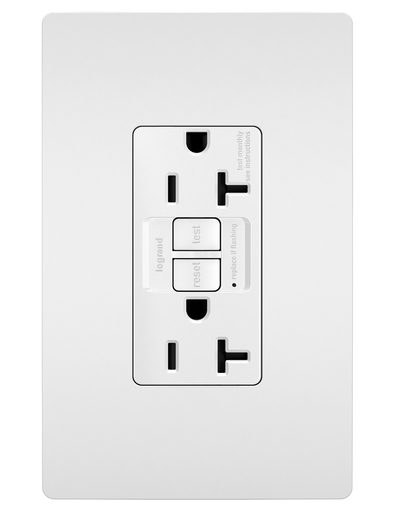

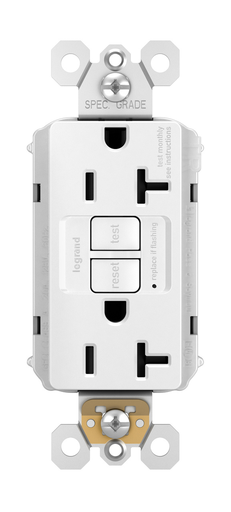

Pass & Seymour PT2097-TRW 20A 125V Spec-Grade Tamper-Resistant Self-Test GFCI Receptacle - White

Manufacturer: Legrand Pass & Seymour | Catalog # PT2097TRW | Codale Part # 4222128
$79.56/ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail®- information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial,Residential
Connection Type
Built-in Connector
Frequency
60 Hz
Interrupt Rating
4.0 A
Material
Thermoplatic
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Tc Connection
Built-in Connector
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007047998
Color
White
Environmental Conditions
95 PCT
Finish
Matte
Product UPC
78500704799

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • cULus Listed
Features
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
