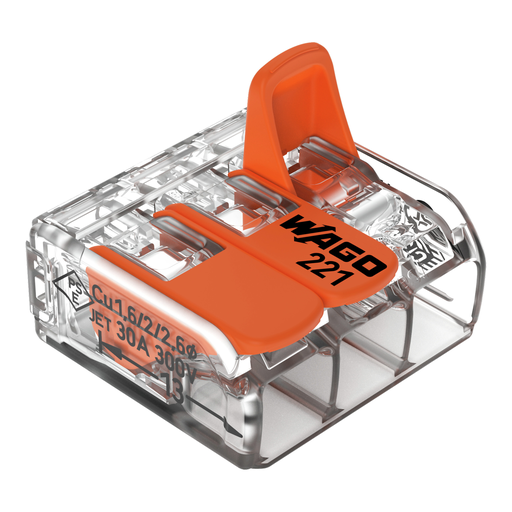

Image thumbnail 3
Email

Wago 221-613 3-Conductor #10 AWG Push-In LEVER-NUTS® Wire Splicing Connector, #20-#10 Solid/Stranded, Clear w/Orange Lever (Box of 30)

Manufacturer: Wago Wire Connectors | Catalog # 221-613 | Codale Part # 4223567
$44.61/ea
bx
Log in or register to view your price, purchase history, and more!
132 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
COMPACT Splicing Connector; for all conductor types; max. 6 mm.; 3-conductor; with levers; transparent housing; Surrounding air temperature: max 85.C (T85); 6,00mm.; transparent Qty 1 (box) = 30 pcs (sold by the box)

Technical Information

Actuator
Lever
Conductor Material
Copper
Conductor Size
10 AWG
Current
41 Amp
Flamability Class
V2
Insulation Material
Polycarbonate
Number of Connections
3
Operating Temperature
105 degrees C
Strip Length
0.55 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
551437183496
Color
Transparent
Product UPC
55143718349
Weight
4.014 g

Dimensions

Depth
0.831 Inch
Height
0.398 Inch
Width
0.902 in

Certifications and Compliance

Country of Origin
Switzerland
Approvals
  • Lloyds Register, LR, LR22207029TA, EN 60998
  • DEKRA Certification B.V., ENEC 05, 71-123784, EN 60998
  • UL International Germany GmbH, UL, E69654, UL 486C
  • American Bureau of Shipping, ABS, 18-HG1755093-PDA, EN 60998
  • UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
  • DEKRA Certification B.V., CB, NL-81003, IEC 60998
Features
  • Ease of use pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.5 to 6 mm²
  • Connection of all conductor types
  • Time savings for installers and device manufacturers
  • Quickly install devices with higher power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible
Accessory Products
  • 207-1431
  • 207-1433
  • 221-510
  • 221-510/000-006
  • 221-510/000-053
  • 221-941
  • 221-941/000-006
  • 221-942
  • 221-942/000-006
