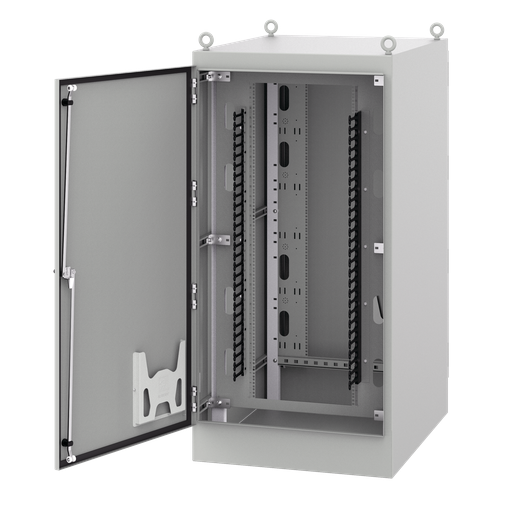

Product image for Hoffman D903646SDA Seismic Free-Standing, Dual-Access Cabinet, Type 12, 90" x 36" x 46", Lt Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman D903646SDA Seismic Free-Standing, Dual-Access Cabinet, Type 12, 90" x 36" x 46", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # D903646SDA | Codale Part # 4224829
$10,867.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ideal where front or front and rear access is required. These enclosures have sturdy unibody construction with 19-inch rack angles to support equipment. These enclosures are ideal for housing and protecting networking and communications from dust, liquid, and seismic events. 36-inch wide models include integral, vertical cable management that supports copper and fiber networking cables.

Technical Information

Color Coding
RAL 7035
Material
Steel
Rack Unit
42
Standard
CSA, File No. 42186, Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,E.I.A. RS310-D,IEC 60529, IP55,Meets California Building Code (CBC) Requirements,NEBS-Telecordia GR-63-CORE Zone 4: Tested With 1000 Lb. Of Equipment Installed,NEMA/EEMAC Type 12,OSPHD Pre Approved OPM -0248-13,UL 508A Listed; Type 12; File No. E61997

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510305352
Color
Gray
Finish
Powder Coated
Product UPC
78351030535
Weight
876 lb

Dimensions

Depth
46.16 Inch
Height
90.26 Inch
Length
60 Inch
Thickness
2.66 mm
Width
36.14 in
DISK UNSPSC
40101701
Features
  • Reinforced stainless steel construction protects networking/communication equipment from dust, liquid, and seismic activity
  • Six seismic bottom-mounting plates made of painted plated steel for 5/8-inch diameter anchors
  • Lifting eyes installed for ease of handling
  • Rack angles included are infinitely adjustable from front-to-rear supporting multiple networking/communication equipment configurations
  • 36-inch wide models include integral, vertical, RU-aligned fingers for supporting copper and fiber networking cables
  • AC models available for heat management
  • Data pockets included for equipment information management/organization
