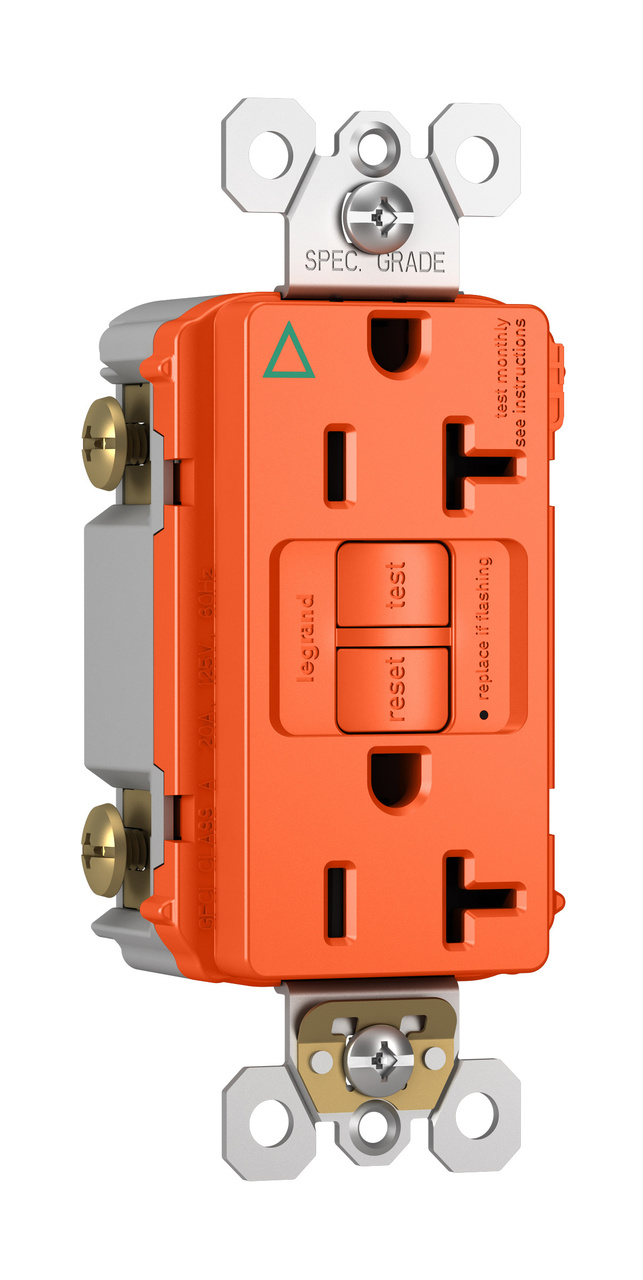

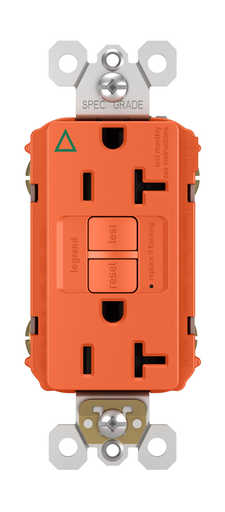

Pass & Seymour 2097-IGTRO 20A 125V Self-Test Tamper-Resistant Isolated Ground GFCI Orangs

Manufacturer: Legrand Pass & Seymour | Catalog # 2097IGTRO | Codale Part # 4225026
$83.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial,Residential
Connection Type
Back Wire,Side Wire
Frequency
60 Hz
Interrupt Rating
4.0 A
Material
Thermoplatic
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Tc Connection
Back and Side Wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Isolated Ground Tamper-Resistant 20A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007048698
Color
Orange
Environmental Conditions
95 PCT
Finish
Matte
Product UPC
78500704869

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Spec-Grade GFCI self-test
  • One-piece, brass, triple-wipe power contacts for lasting retention.
Certifications
  • cULus Listed
