Hubbell HBL5242WDUP Receptacle, INT GRD, 15A 125V, 5-15R, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5242W | Codale Part # 4226533
$20.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Compact
Base Material
PBT
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
0.5 hp
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Push-In and Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585434742
Color
White
Environmental Conditions
Indoor Only
Product Series
Heavy Duty
Product UPC
78358543474
Weight
0.2 lb

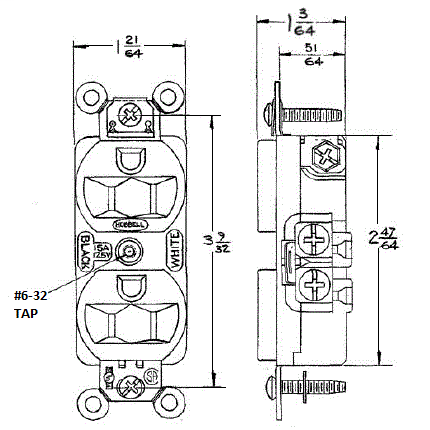

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Slender/compact design
  • Brass Mounting Strap
  • Triple wipe contacts
  • Compact design and Self Grounding
