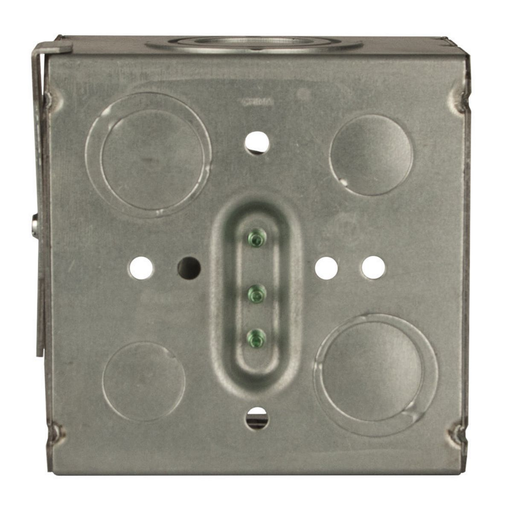

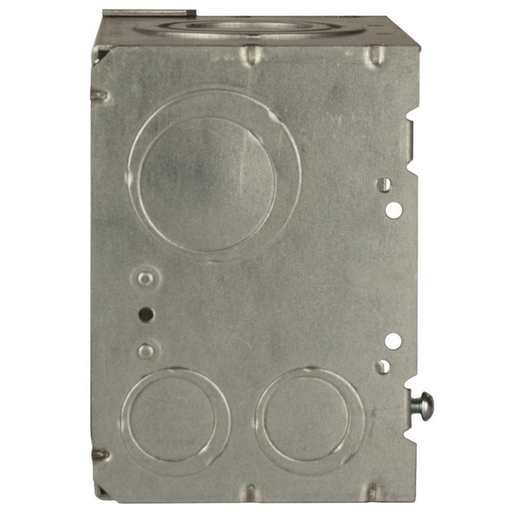

Product image for RACO 260H 4-11/16 BOX 3-1/4 DEEP H-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

RACO 260H 4-11/16 BOX 3-1/4 DEEP H-

Manufacturer: Raco | Catalog # 260H | Codale Part # 4227021
$6,857.46/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
35 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
4-11/16 in. Square Box, Large Capacity, Welded, 3-1/4 in. Deep, (2) 1/2 in. KO, (4) 1/2 - 3/4 in. TKO, (2) 3/4 - 1 in. TKO, (2) 1 - 1-1/4 in. TKO, (2) 1, 1-1/4, 1-1/2, 2 in. KO, Raised Ground, H Bracket, Far-Side Box Support

Technical Information

Applications
Commercial
Material
Steel

Manufacturer Information

Brand
RACO

General Product Info

12-Digit UPC
050169500507
Color
Gray
Product UPC
05016950050
Shape
Square
Weight
1.651 lb

Dimensions

Depth
3-1/4 Inch
Height
3-1/4 Inch
Length
3.688 Inch
Width
4.600 in

Certifications and Compliance

Country of Origin
China
Features
  • Welded steel construction with \"H\" bracket which allows for side-by-side mounting on stud and far side box support
  • 4-11/16 in. square x 3-1/4 in. deep
  • Accepts standard 4-11/16 in. covers
  • TKO® Knockouts allow for design and installation flexibility
  • Includes knockouts 1/2 in through 2 in.
  • Three pre-installed ground screws
