Panduit CBXQ2WH-A Mini-Com® Surface Mou

Manufacturer: PANDUIT | Catalog # CBXQ2WH-A | Codale Part # 4227764
$10.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

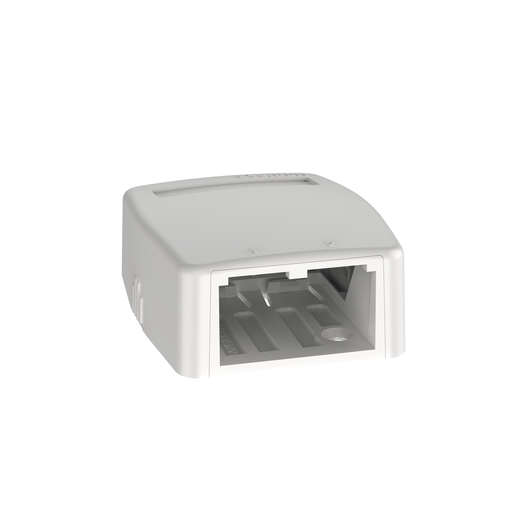

The Mini-Com® Surface Mount Box is plenum rated and accepts two Mini-Com Modules. Cover has a quick release mechanism that allows easy access to the modules; cover can be secured with a screw. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box includes a label pocket for easy identification and is white.

Technical Information

Material
ABS Plastic
Mounting Type
Surface
Standard
CSA,E2186,UL
Type
2-Port, Quick Release

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
613056169425
Color
White
Product UPC
61305616942
Weight
0.0600 lb

Dimensions

Depth
66 mm
Height
0.98 Inch
Overall Length
2.6 in
Width
53.4 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: UL 1863; UL 2043; RoHS Compliant
