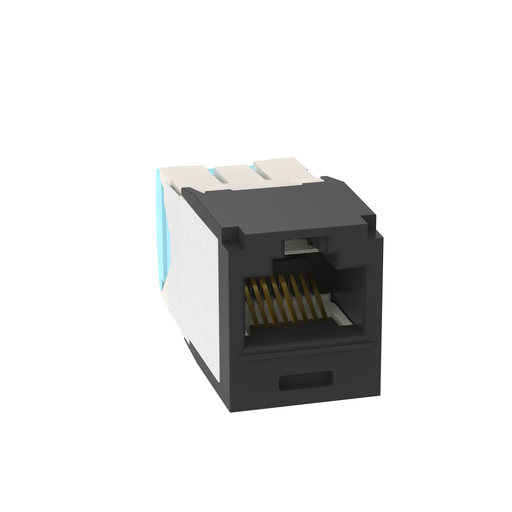

PAN CJT6X88TGBL Mini-Com® UTP RJ45

Manufacturer: PANDUIT | Catalog # CJT6X88TGBL | Codale Part # 4228288
$40.48 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6A UTP RJ45 28 AWG TG Jack Module is designed to terminate 4-pair, 28 AWG solid/stranded and 30 AWG solid twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is black.

Technical Information

Applications
For Data Centers and Connections to High End Workstations Such as Stacking Switches and Switch to Switch Links, Storage Area Networks, Aggregation of Gigabit Ethernet Channels, Real Time Intensive Financial Transactions, Streaming Video, Animation, Scientific Modeling and Medical Imaging
Cable Entry
T568A/T568B
Cable Size
28/30 AWG Solid or Stranded
Cable Type
Category 6A
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6A
Temperature Rating
-10 to 65 degrees C
Type
Unshielded, Universal, 8-Wire, RJ45

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
10Gig™, Mini-Com, TX6A™

General Product Info

12-Digit UPC
074983084999
Color
Black
Environmental Conditions
14 F
Product UPC
07498308499
Used With
T568A/T568B Wiring Schemes
Weight
0.0400 lb

Dimensions

Depth
1-1/2 Inch
Height
0.72 Inch
Overall Length
38.1 mm
Width
16.2 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards at Swept Frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, CSA Standard C22.2, and RoHS Compliant
