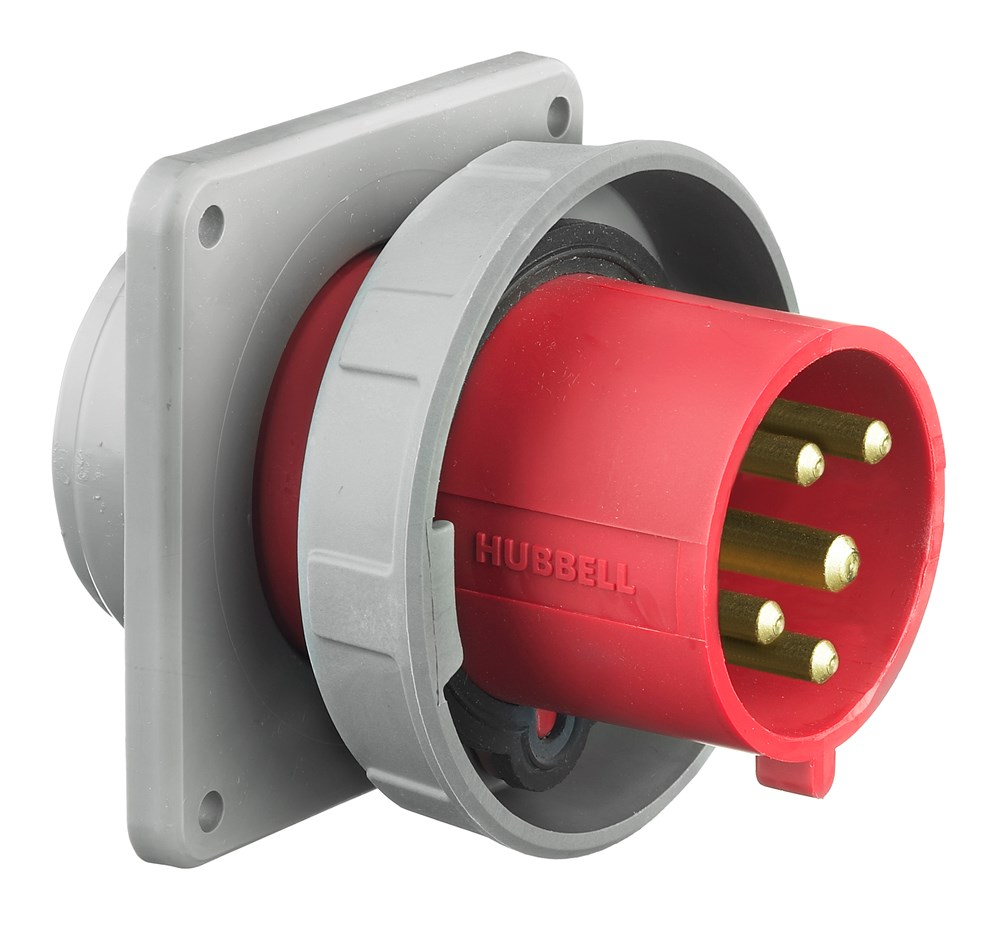

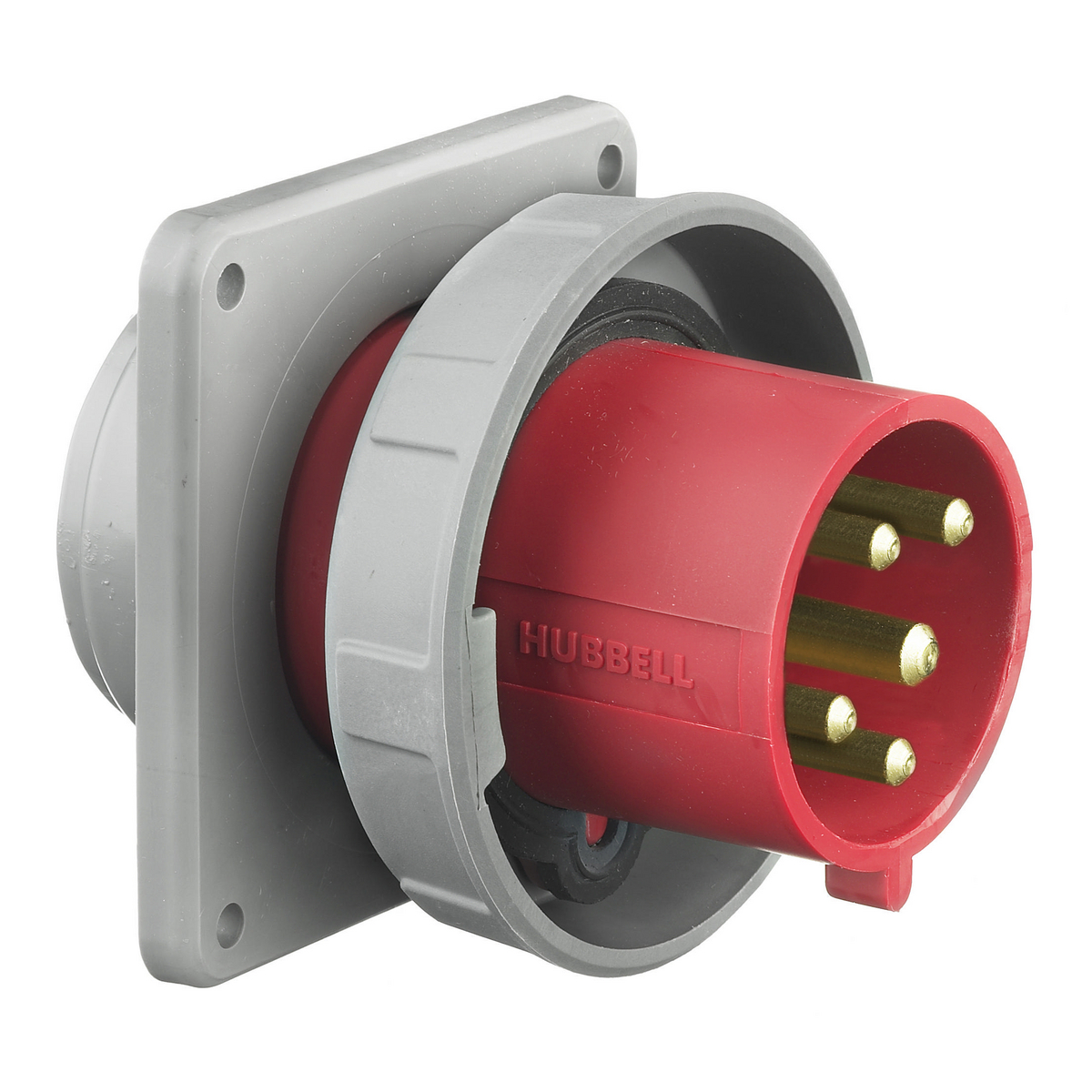

Hubbell HBL516B6W PS, INLET, 4P5W, 16/20A 220-415V, 4X/69K

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL516B6W | Codale Part # 4228725
$226.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 16A 380/415V, 4-Pole 5- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
16 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
14 AWG
Current
16 Amp
Material
Thermoplastic
Mounting Type
Screw, Surface
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Single, Flanged, Standard Sized, Straight
Voltage
240/415 Volt
Wattage
6640 Watt
Wire Count
5
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Inlets

General Product Info

12-Digit UPC
783585405186
Color
Red
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540518
Weight
0.95 lb

Dimensions

Height
4.06 Inch
Length
4.43 Inch
Width
4.370 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1.
  • Environmental - Operating Temperatures - Maximum Continuous 75°C
  • Minimum - 40°C w/o impact
  • Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682
  • Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Voltage Rating
  • 220/380 V V
  • 240/415 V V
Features
  • Rugged one-piece housing
  • Watertight
  • Thermoset polyester contact carrier
  • Solid one-piece pins for reliable electrical contact
Industry Standard(s)
  • CSA Certified File LR280C
  • UL Classified to IEC 60309-1 IEC 60309-2
  • UL Listed, File E146032
